The Champion Table Build, Part 3: Leg Joinery

champion table 301

flattening walnut stock with a wooden joiner for the top rails of the leg assembly

champion table 302

using winding-sticks to make sure there is no twist in the board

champion table 303

finishing up with a #7 jack plane

champion table 304

squaring up the remaining edges and dimensioning the walnut on the bandsaw

champion table 307

layout lines

champion table 308

initial shaping of the curves on the top rail of the legs

champion table 309

testing it against the table-top

champion table 310

sawing lengths of white-oak for the vertical posts of the leg assembly

champion table 311

the white oak after squaring-up

champion table 312

testing the concept and a few angles before committing

champion table 316

laying out the leg joints

champion table 317

establishing the sliding dovetail angle with a knife

champion table 318

cutting the front of the sliding dovetail

champion table 319

all the bandsaw work done, now the hand-tools will finish

champion table 320

paring the back cheek of the tenon

champion table 321

the joint is most of the way there- the waste between the mortise and the dovetail is yet to be removed

champion table 322

the four white oak legs all cut

champion table 323

the arsenal of tools to accurately transfer the dimensions of the tenon/ dovetails onto the walnut rails

champion table 306

marking

champion table 324

starting the cut for the sliding dovetail socket with a carcass saw

champion table 325

another view cutting sliding dovetail sockets

champion table 326

chopping out the waste in the socket

champion table 327

paring the sidewalls unreached by the saw

champion table 328

using a router plane to achieve an accurate floor of the joint- the leg on the cutter allows it to reach the angled corners

champion table 329

another view of the router-plane

champion table 330

starting the mortise with a 3/4 mortise chisel

champion table 331

the first row is delicate- just establishing the shape and protecting the corners

champion table 332

going the full depth of the mortise with an auger – you can see the round-topped sliding dovetail socket parallel to the mortise

champion table 333

squaring the mortise the rest of the way with the mortise chisel

champion table 336

cleaning the sidewalls with my extra-big paring chisel

champion table 334

thank God, they fit!

champion table 335

step one is successful- to get to this point took endless drawings and two complete practice joints and a lot of patience

champion table 313

marking the leg rails for some shaping/ sculpting cuts on the band saw

champion table 337

the top rails post rough-shaping, and the taper of one of the white-oak legs marked with blue tape

champion table 338

dry re-assembly just to make sure

champion table 339

the glue-up

champion table 340

next week will concern the joining of the bottom rail and the final shaping of the leg assemblies

The Champion Table Build, Part 1: Compose, Scribe and Fit

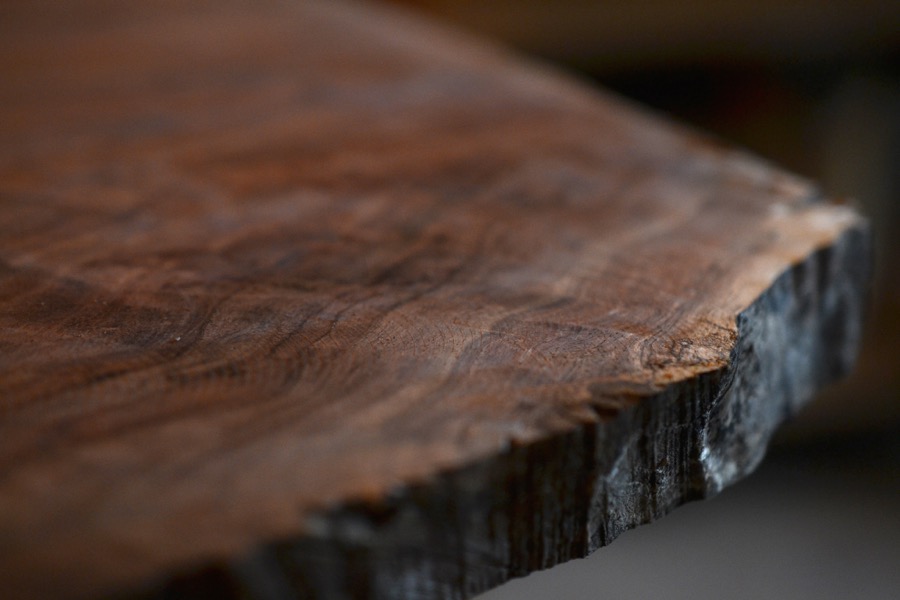

Champion Table Scribe02

the beauty of God’s edge

Champion Table Scribe04

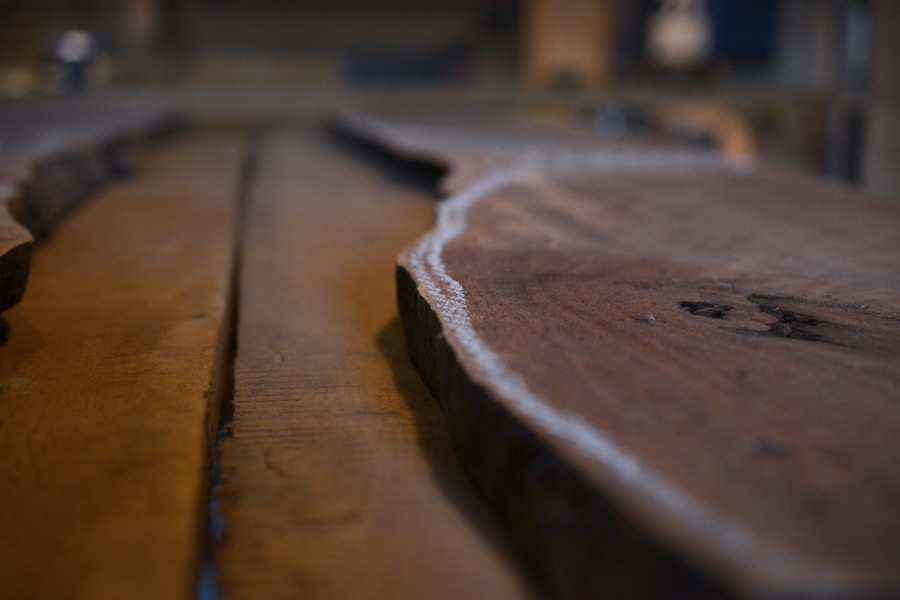

composing pieces

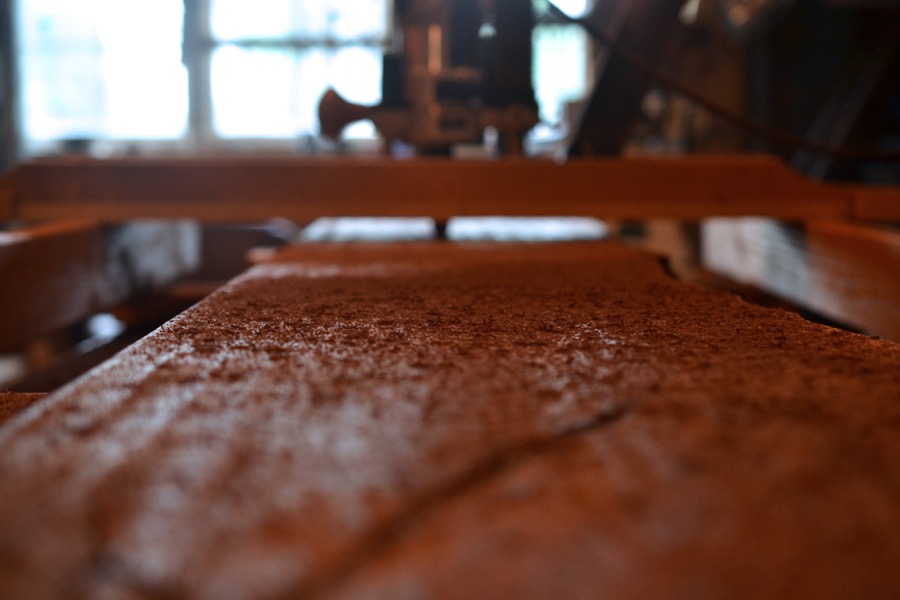

Champion Table Scribe01

flattening black walnut with a router and jig

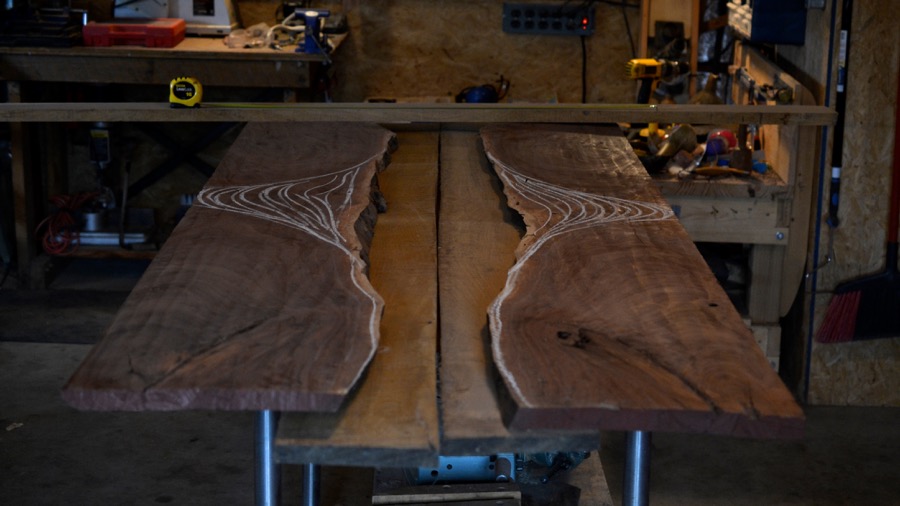

Champion Table Scribe03

more looking, more composing

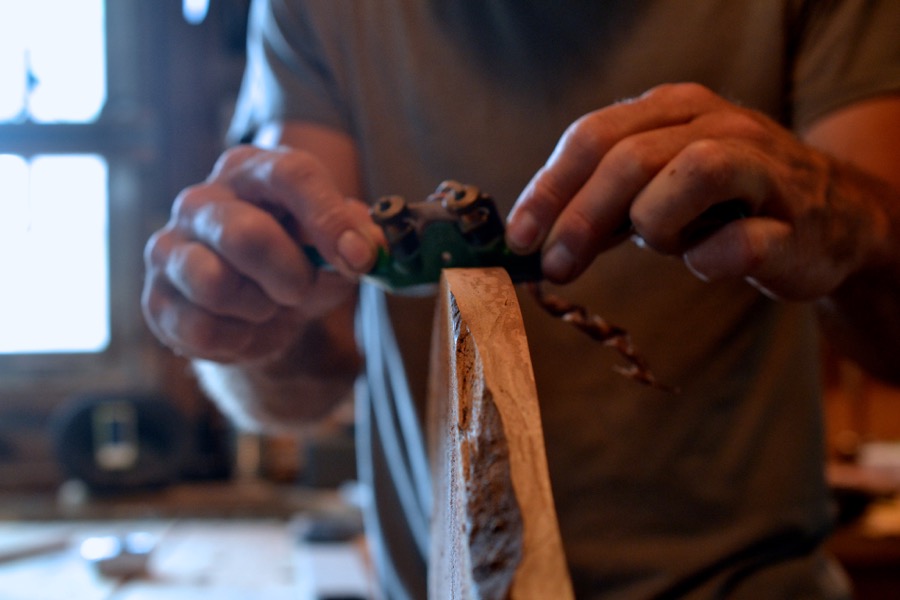

Champion Table Scribe05

smoothing and shaping edges

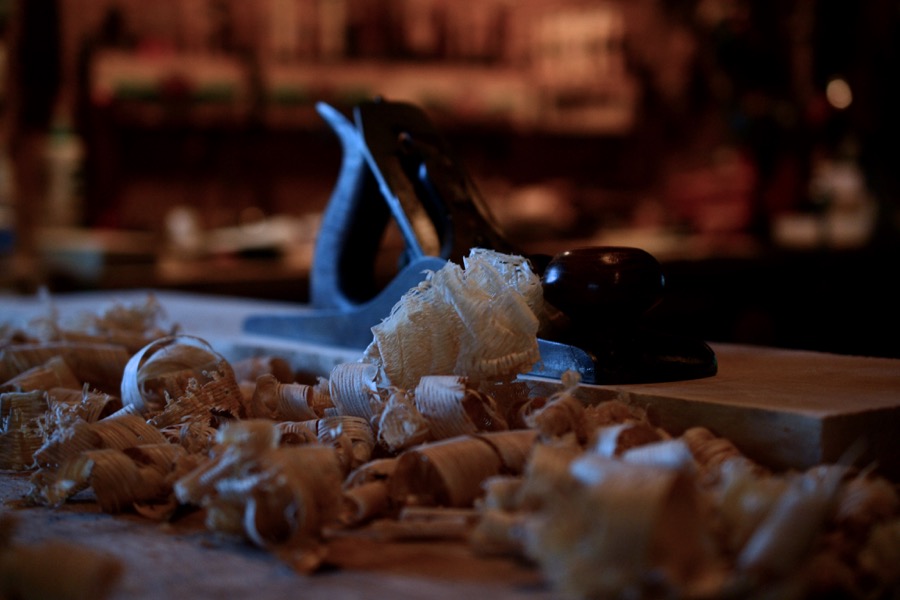

Champion Table Scribe07

smoothing and joining white oak

Champion Table Scribe06

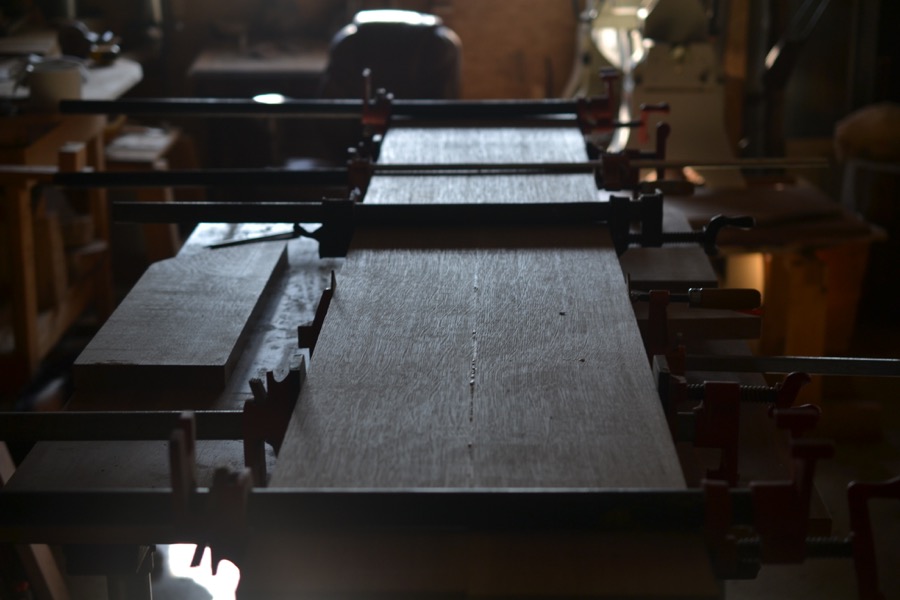

assembling white oak panels

Champion Table Scribe08

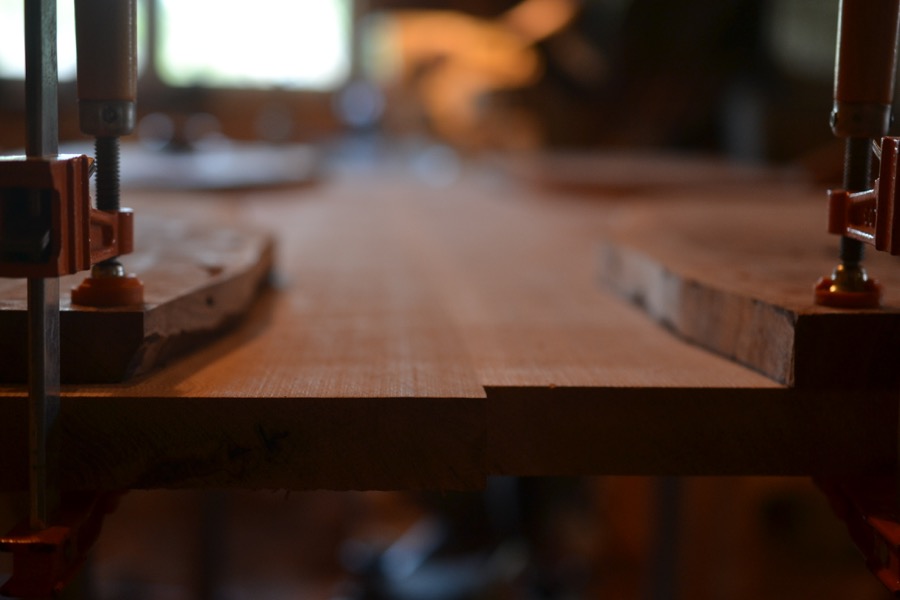

white oak and black walnut adjusted and clamped for scribing

Champion Table Scribe09

knife scribing every curve

Champion Table Scribe10

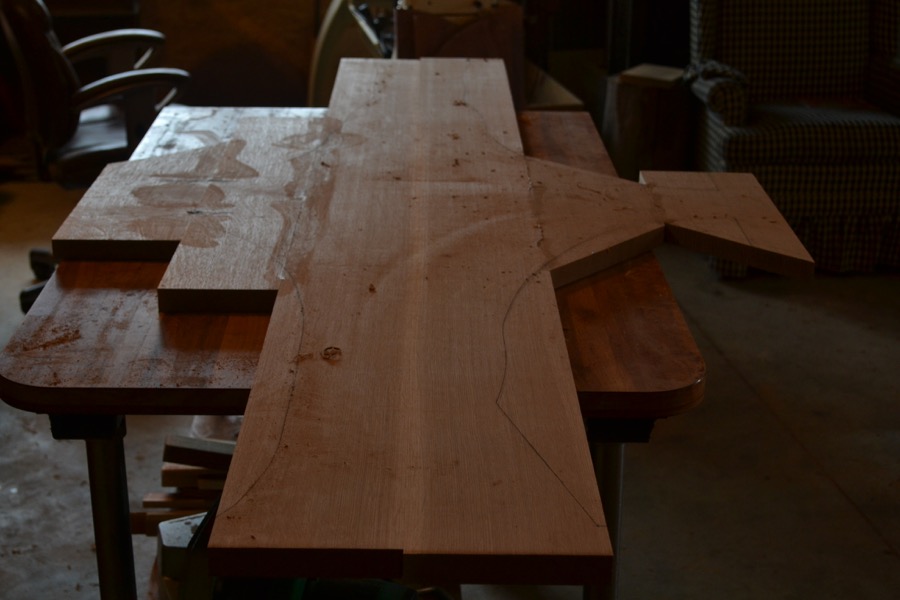

the white oak panel marked and ready to cut

Champion Table Scribe12

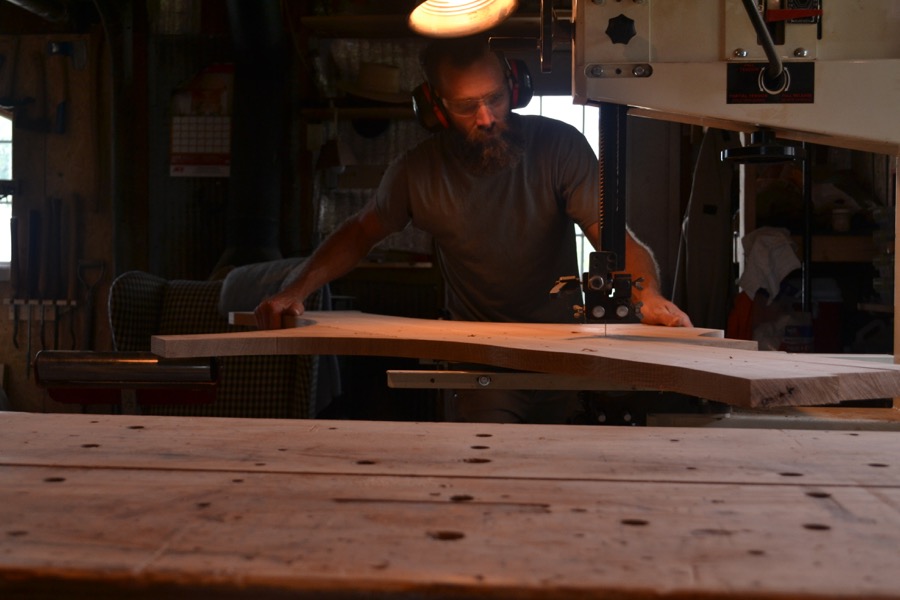

rough cutting on the bandsaw, staying about 1/16th to 1/8th away from the scribed line

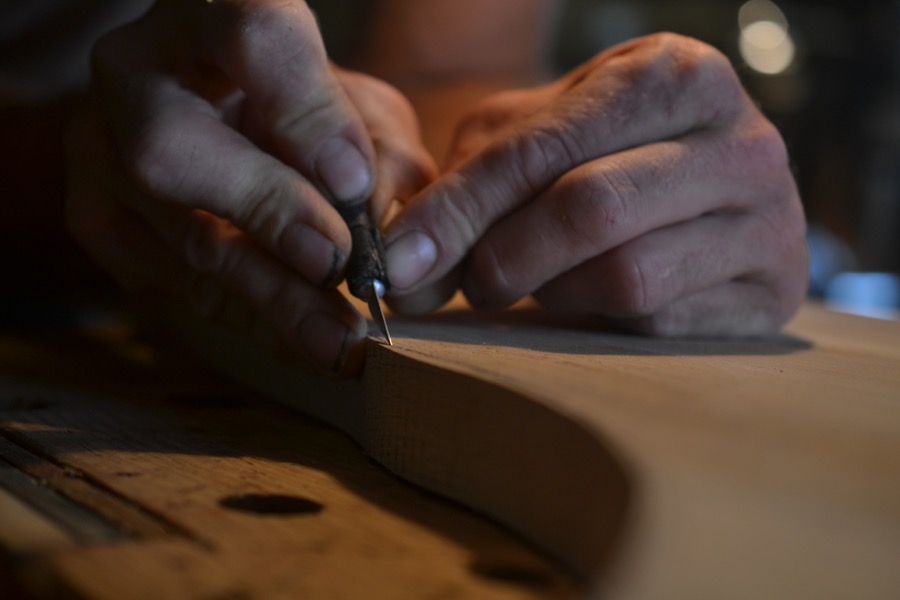

Champion Table Scribe13

cutting the line deeper

Champion Table Scribe14

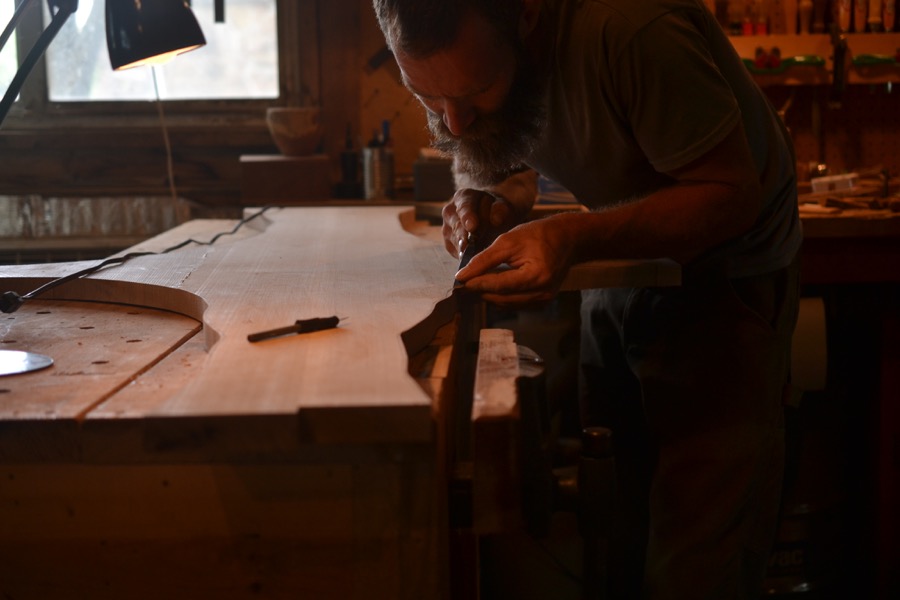

paring away the waste to establish a shoulder along the scribe-line

Champion Table Scribe16

making the shoulders broad and deep

Champion Table Scribe17

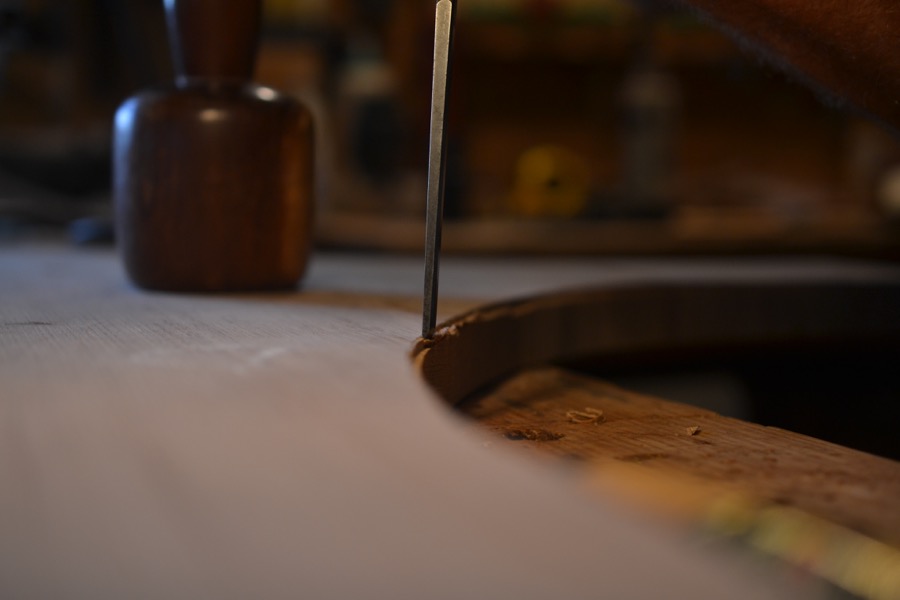

chopping and paring right up to the line

Champion Table Scribe15

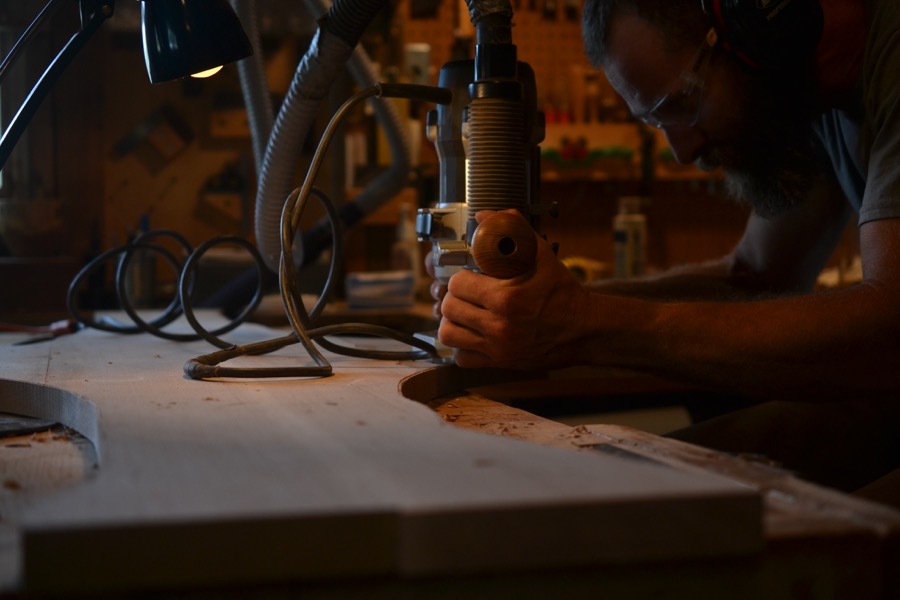

the shoulder becomes a jig to cut the rest of the piece right to the line using a pattern bit and router

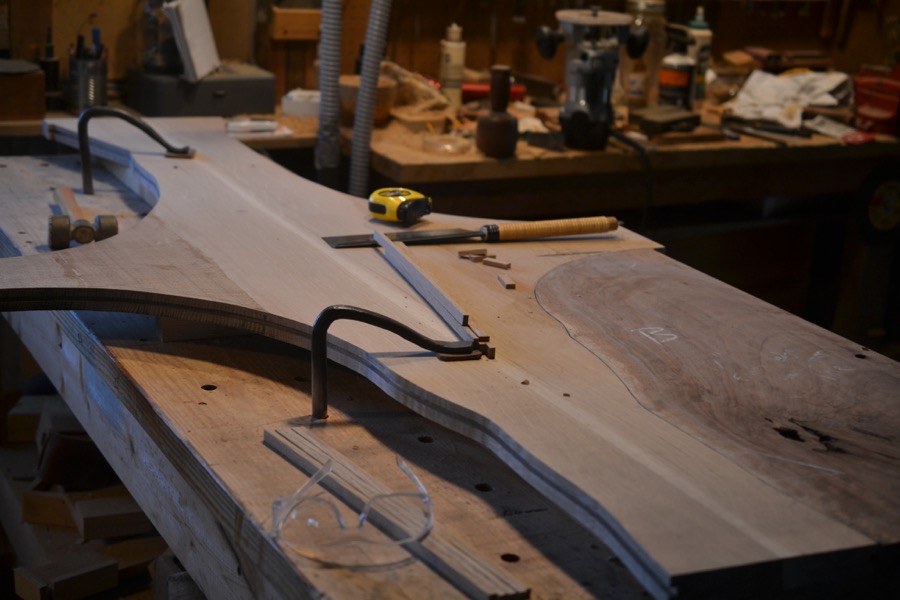

Champion Table Scribe18

after cutting a slot for a floating tenon, dry-fitting pieces

Champion Table Scribe19

the floating tenons cut and laid out

Champion Table Scribe20

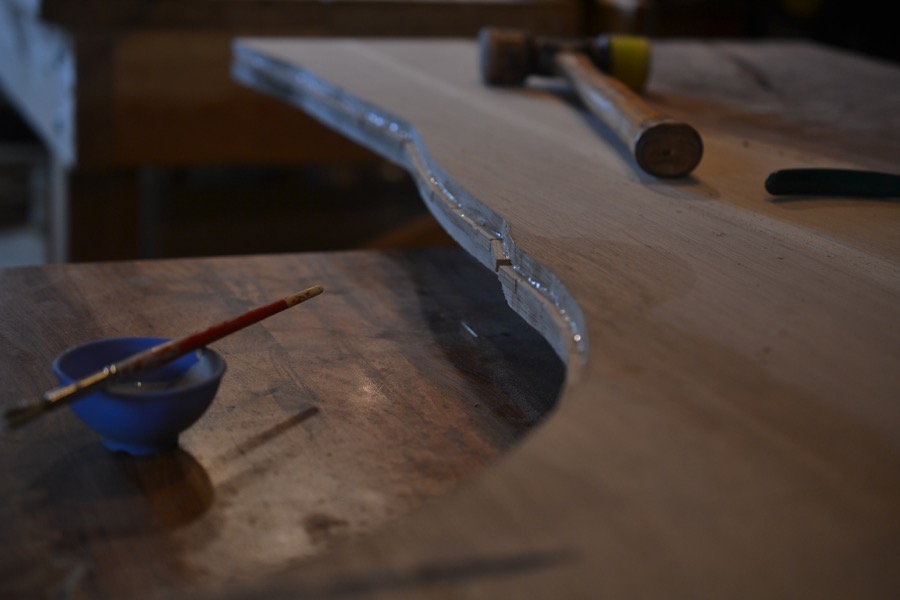

tenons glued in

Champion Table Scribe21

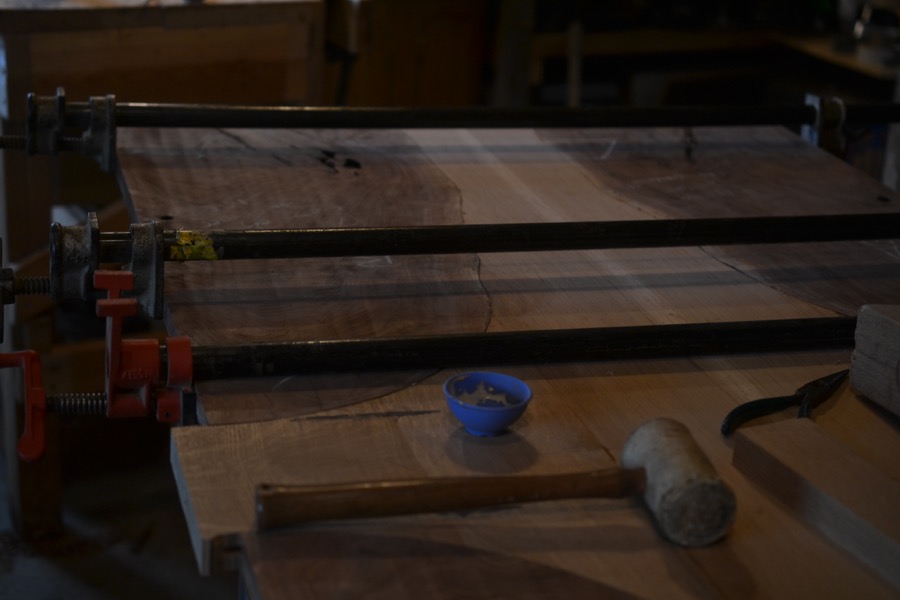

glued and clamped

Champion Table Scribe22

joining and smoothing the new edges

Champion Table Scribe23

on to the next step…
