Walnut Timber Mantelpiece

The six and a half inch thick, 13 foot long walnut slab filled the shop as it came from the chainsaw mill.

Beam cutter on the old worm-drive

“rough-sawn” to the max

Using the “beam-cutter” to rip the slab into a six inch square timber

Pulling the saw at the end of the cut to save the last bit of slab for the corbels

Aluminum C-channel as a guide

start of the smoothing

a jack plane with a radius set to take heavy shavings

Now the joiner

pretty obvious

chopping out for a patch over a rotten knot

the same, fitted

filing the edges of a little copper butterfly template

bench-top with tools for making butterfly templates

variety of butterfly templates

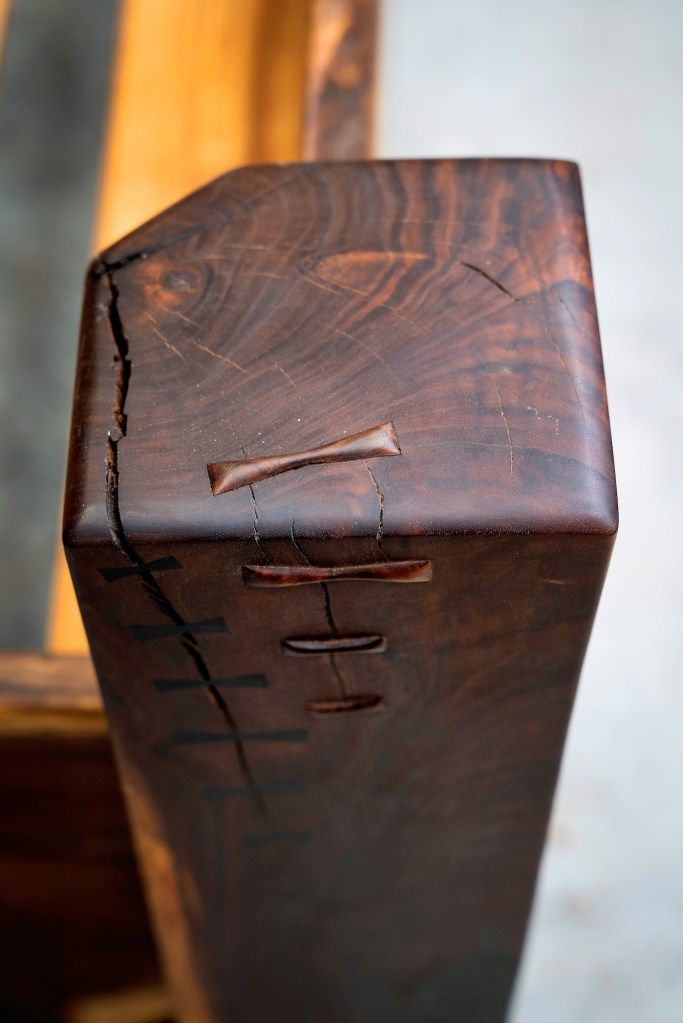

Scribing the timber for butterflies to bind the main check

Routing out the waste

chopping the rest

right up to the knife line

ready for the joining

carving the corbels (my documentation fell off for most of this process)

mating the various natural edges of the corbels to the mantel

a little further back

fitting the opposite corbel

rough-cut cove on the left corbel

both corbels with coves-cut and awaiting final shaping

apply the final touches on the ends of the timber

“C” for the covenant

installed over the fire box, and the home-owner’s sandstone work.

I look forward to seeing it with the stone work done

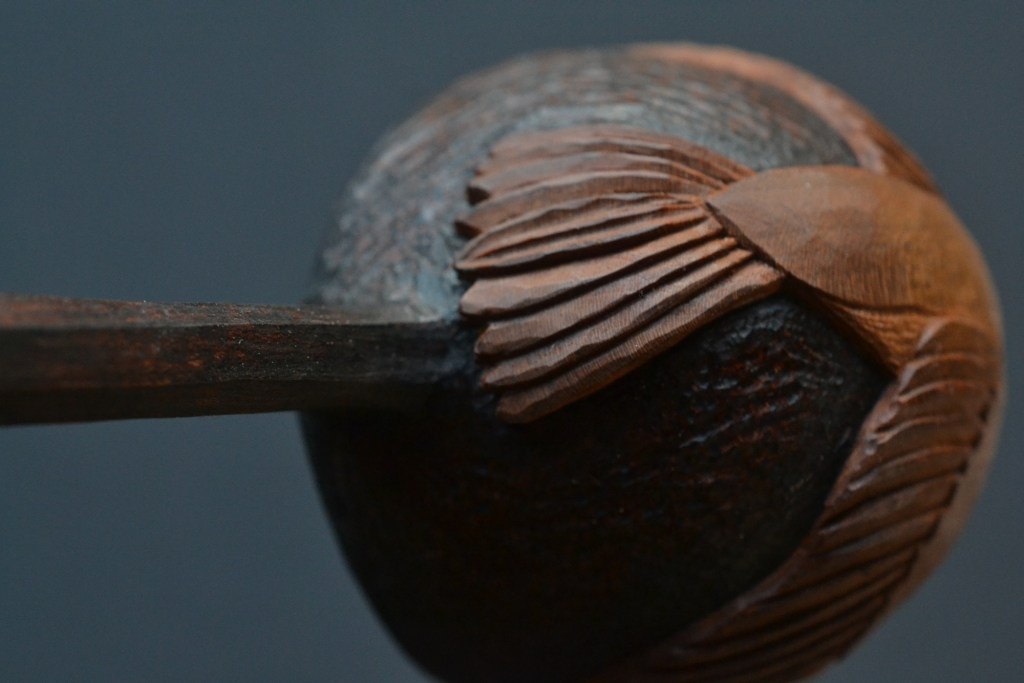

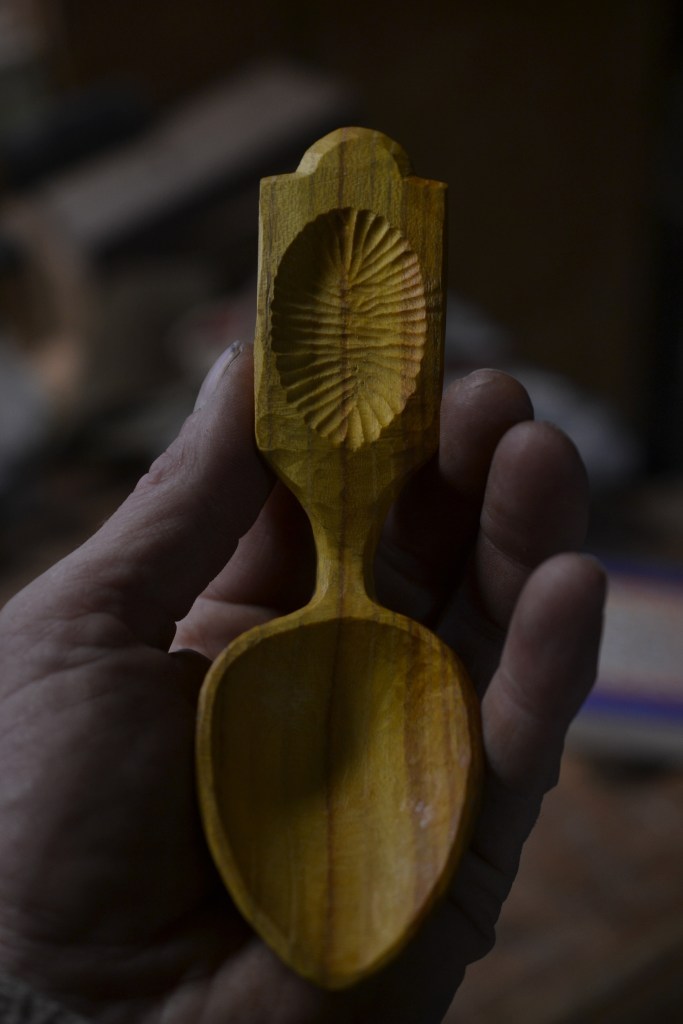

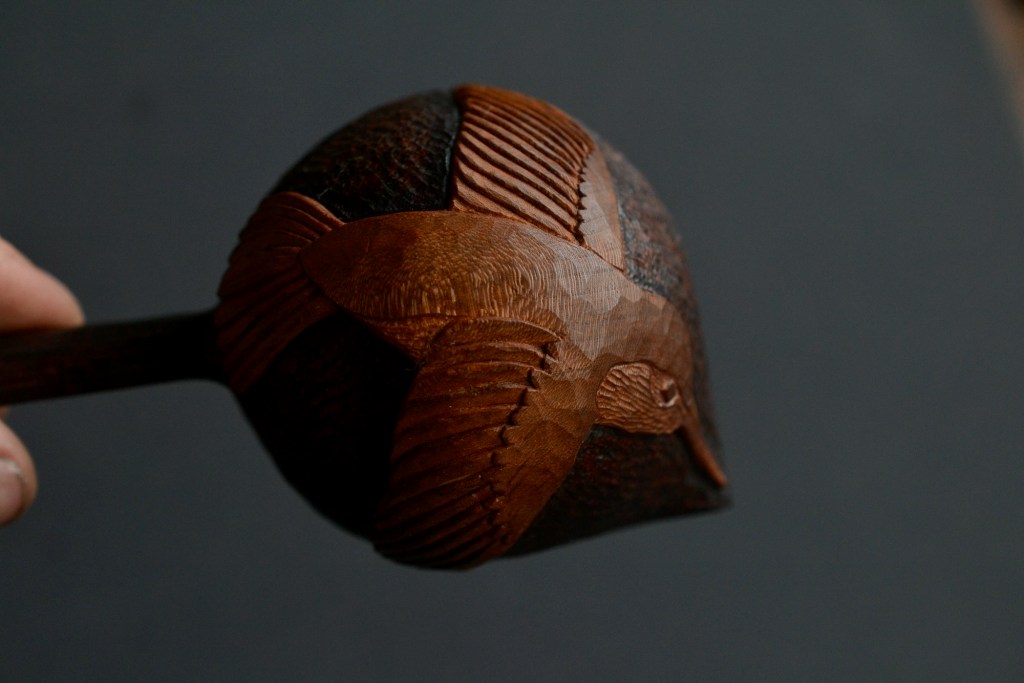

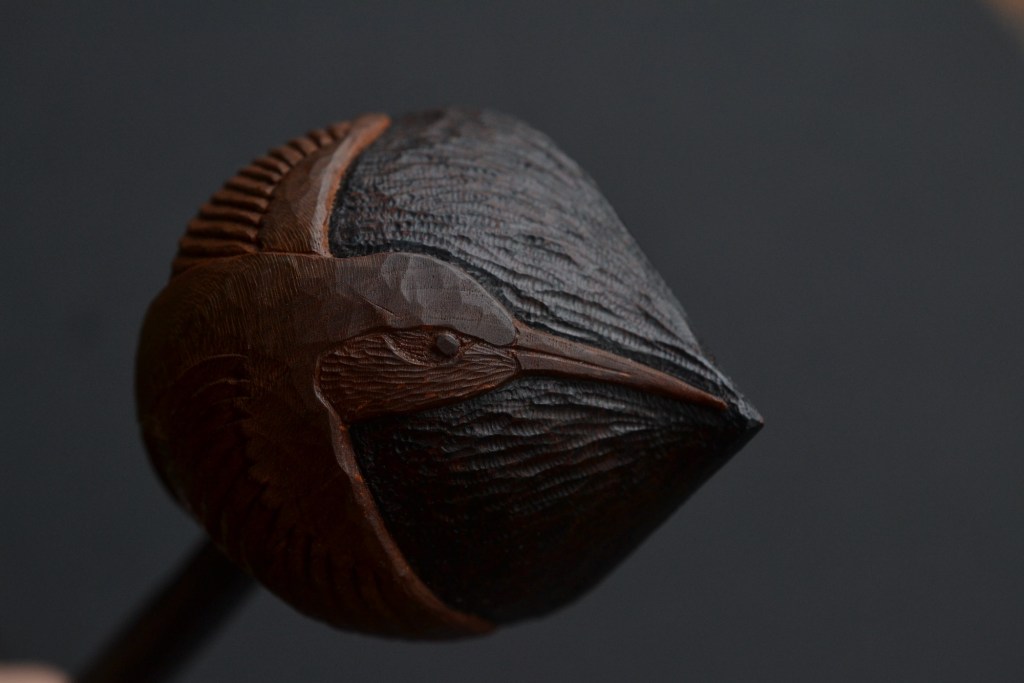

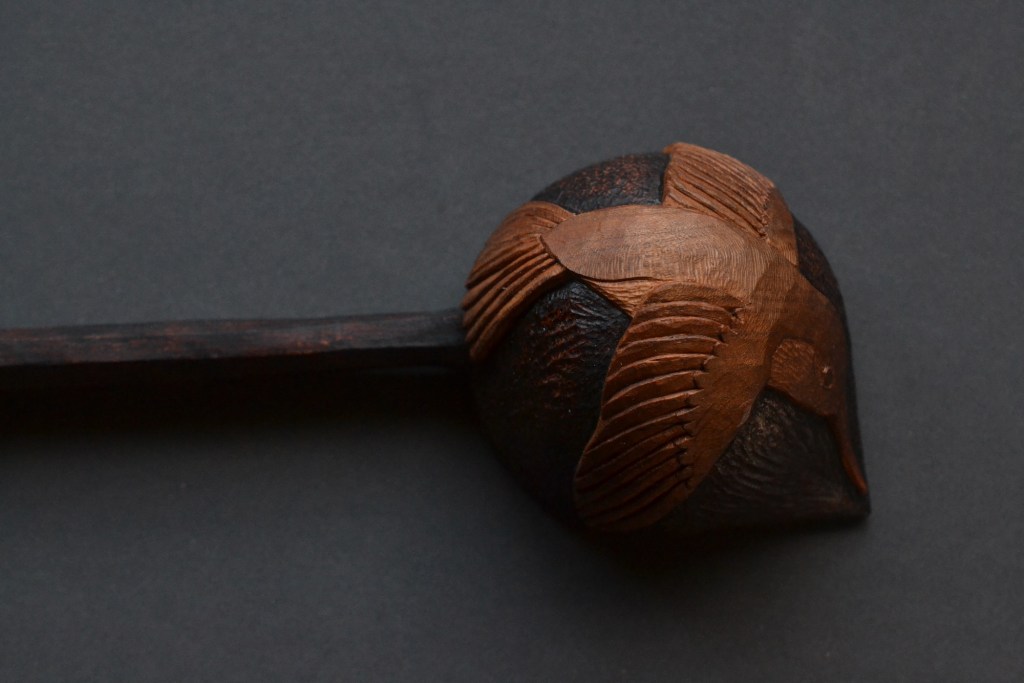

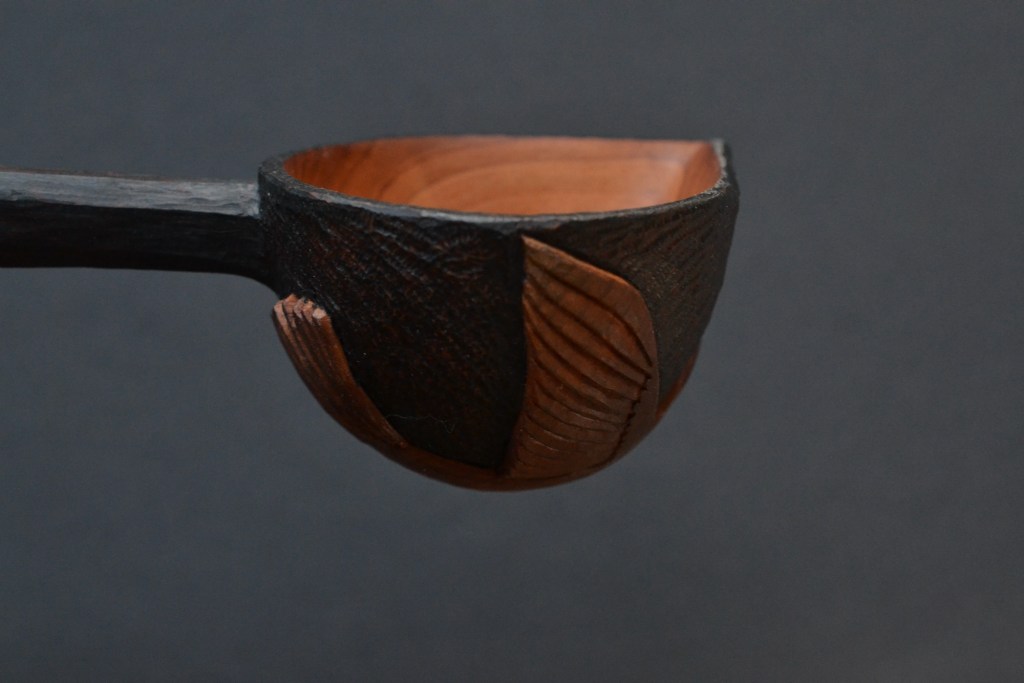

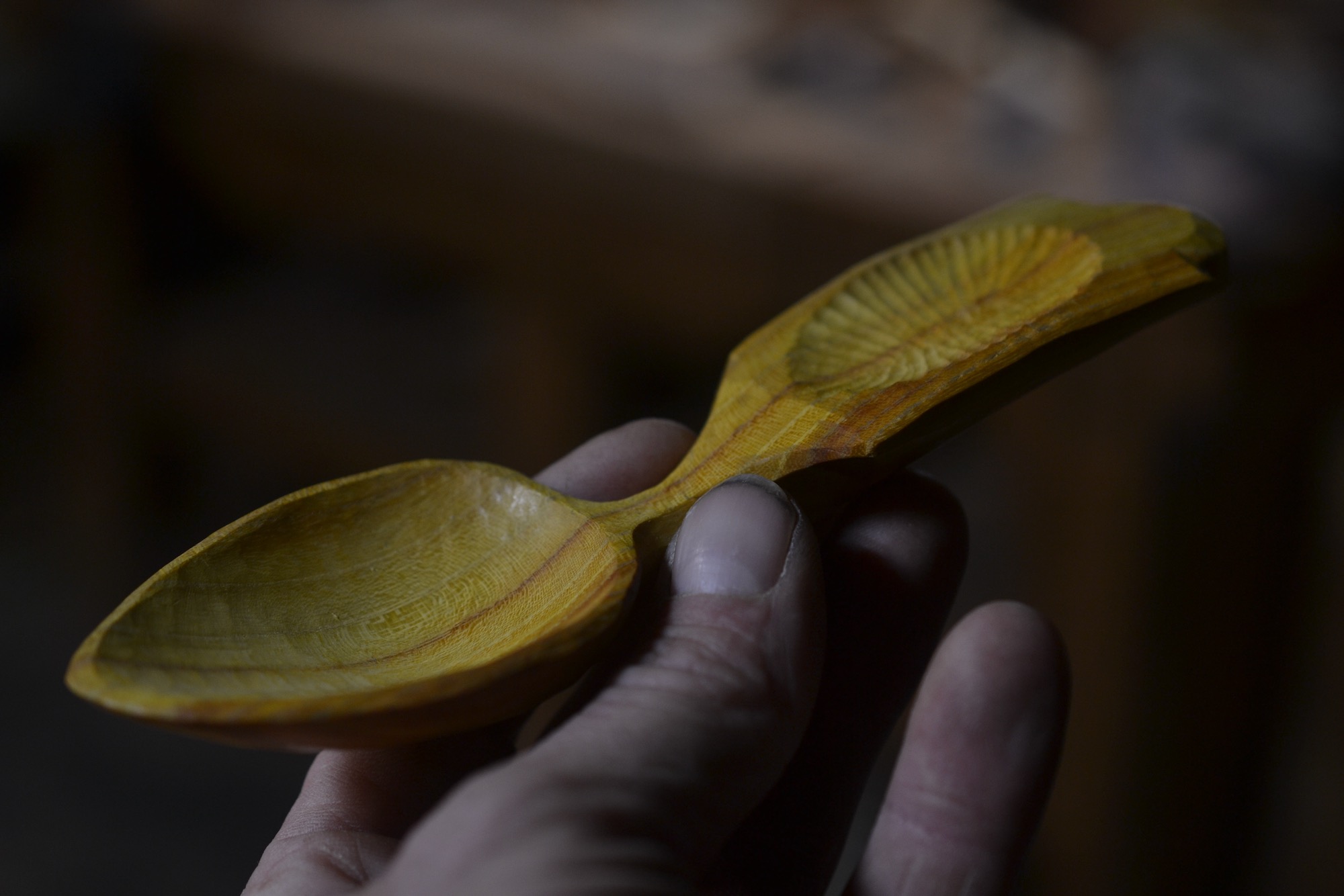

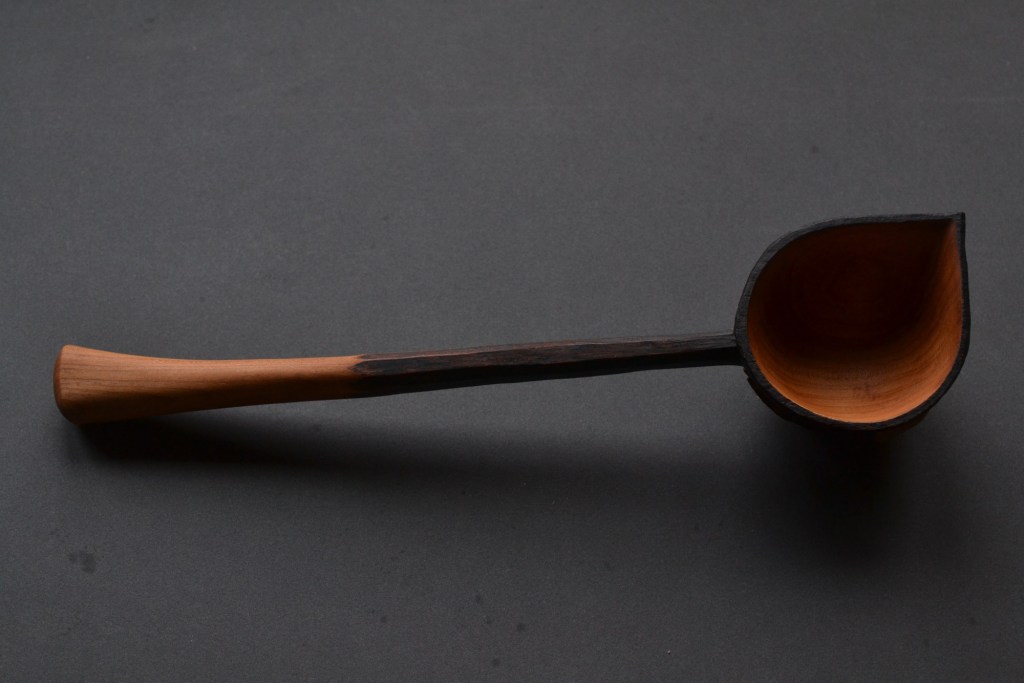

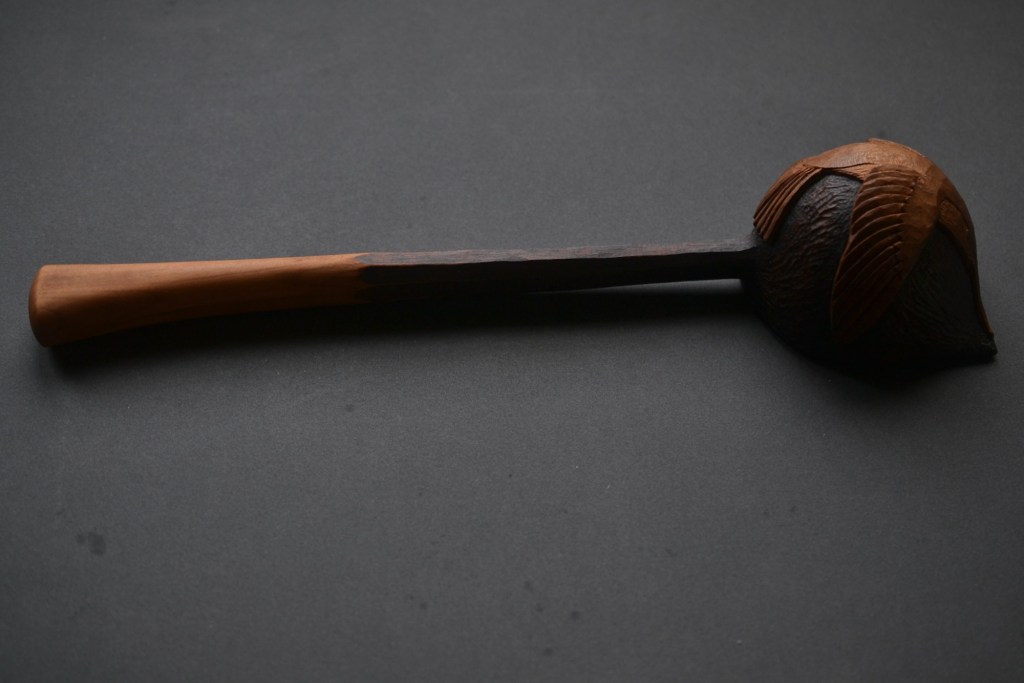

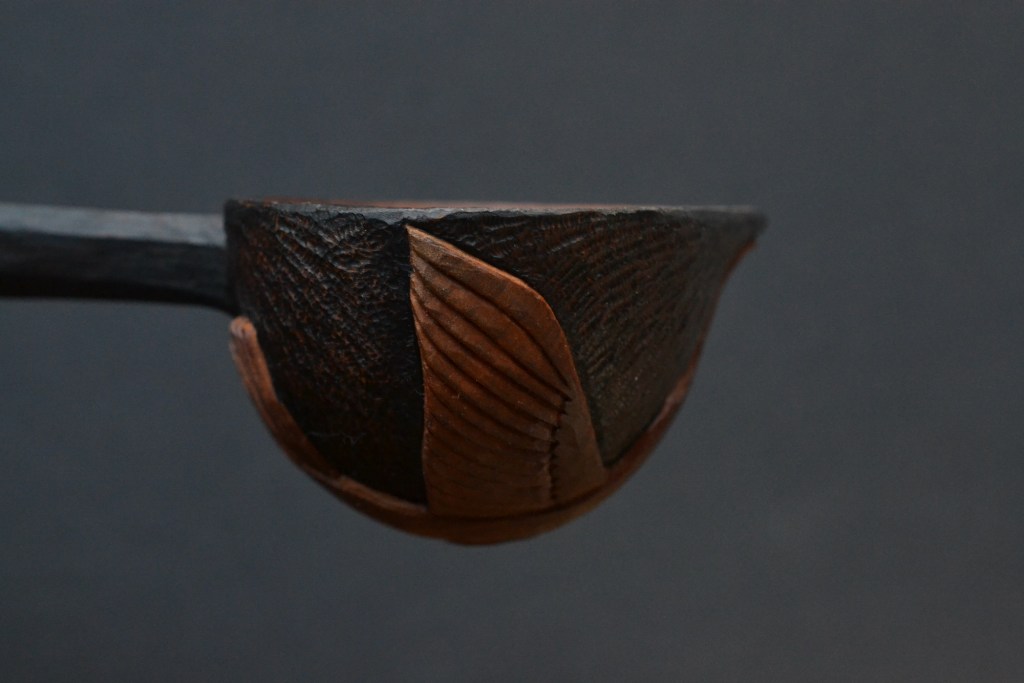

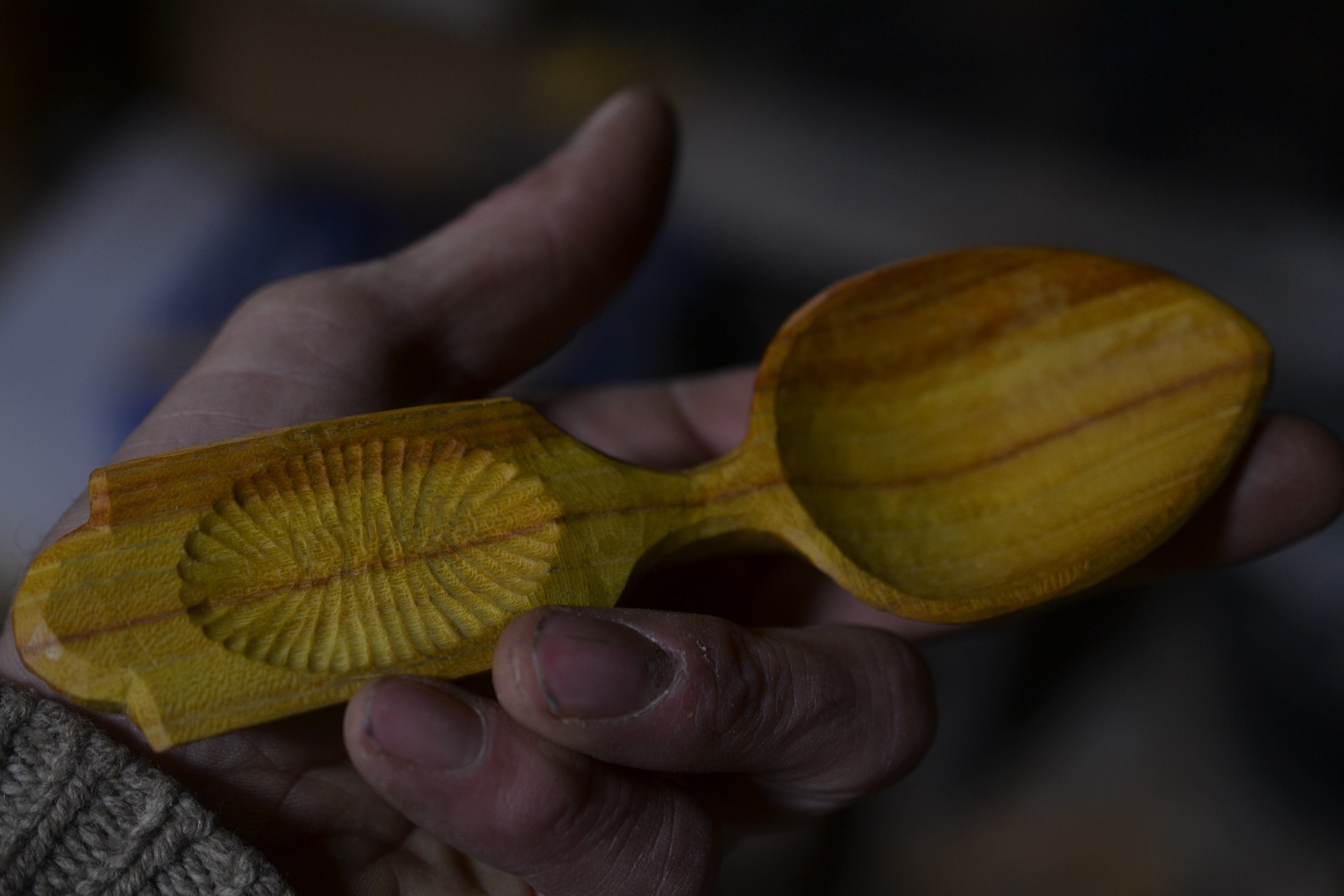

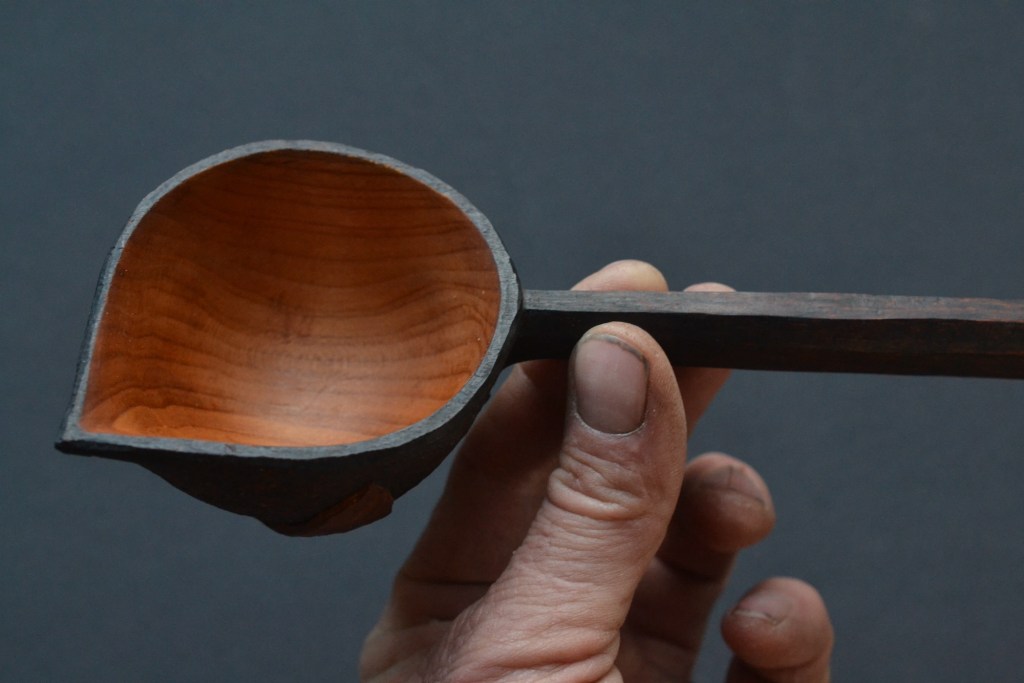

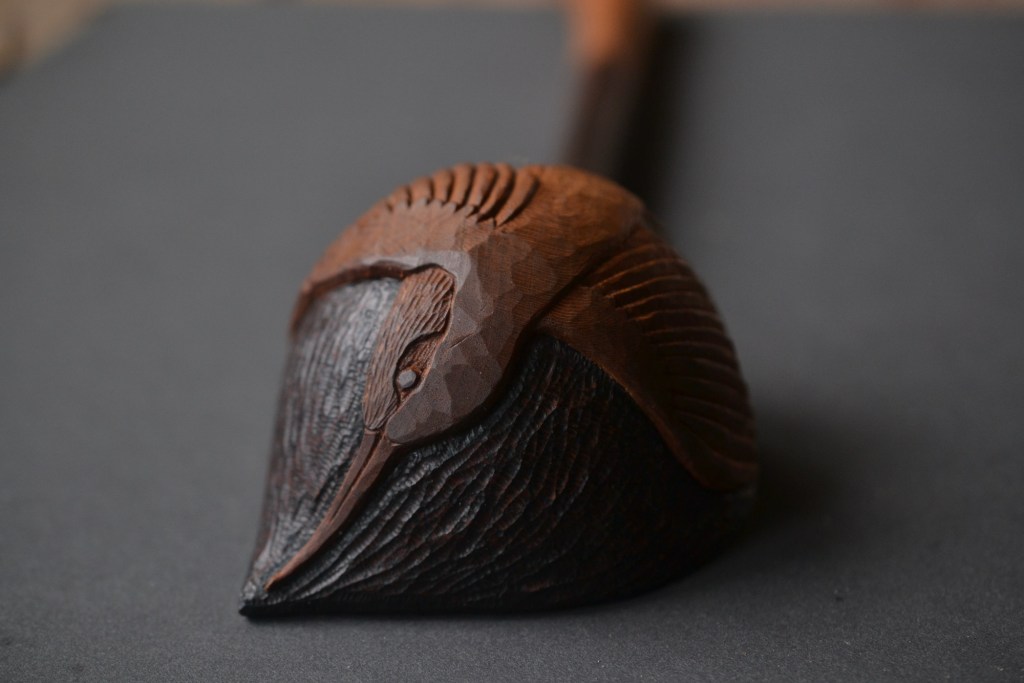

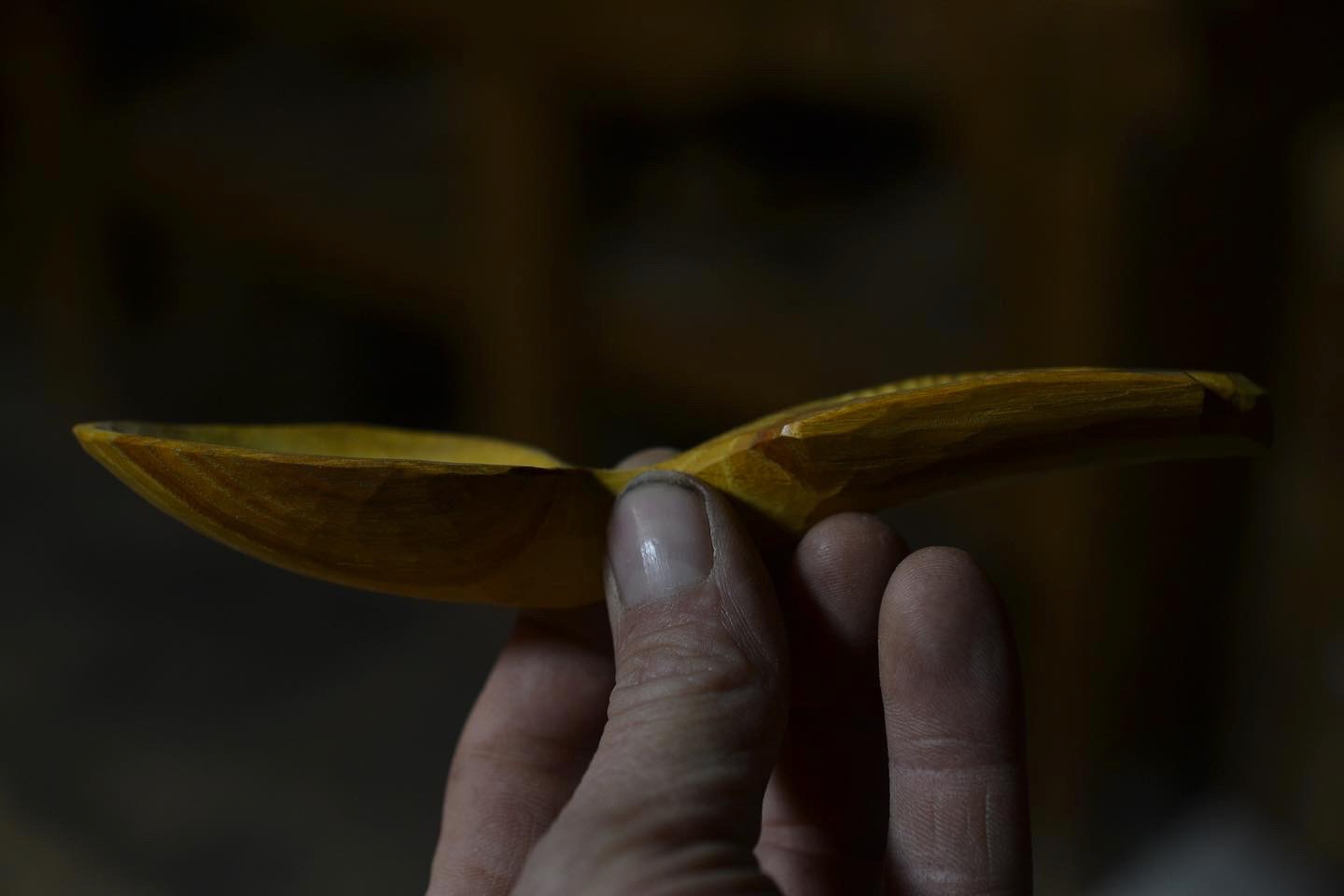

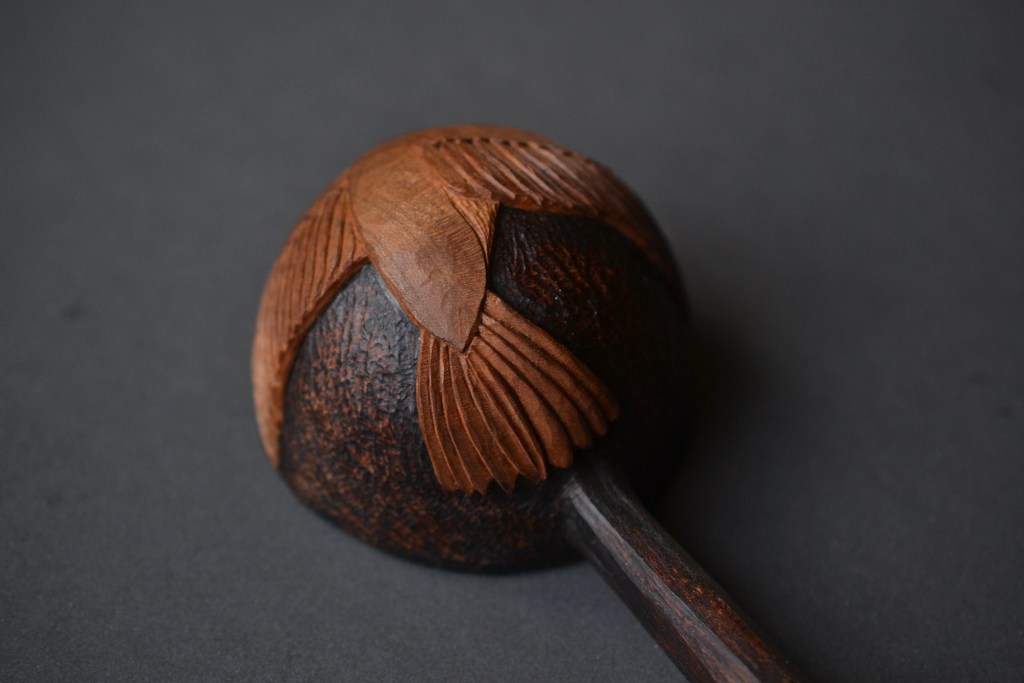

Carved Spoons

“JACK’S STORY” BY ISAIAH ELDRIDGE

Wood Turning – Jack’s Story from Isaiah Eldridge on Vimeo.

Isaiah Eldridge, a local film-maker and journalist, spent some time with me last week as I we both plied our trades.

There Is A Season

there is a season10 there is a season07 there is a season15 there is a season14 there is a season16 there is a season17 there is a season03 there is a season22 there is a season23 there is a season09 there is a season13 there is a season19 there is a season05 there is a season08 there is a season01 there is a season21 there is a season11 there is a season12 there is a season04 there is a season20 there is a season24 there is a season06

Beautiful Industry

beautiful industry33 beautiful industry25 beautiful industry29 beautiful industry04 beautiful industry03 beautiful industry09 beautiful industry30 beautiful industry02 beautiful industry17 beautiful industry34 beautiful industry28 beautiful industry11 beautiful industry12 beautiful industry13 beautiful industry35 beautiful industry20 beautiful industry26 beautiful industry05 beautiful industry18 beautiful industry14 beautiful industry10 beautiful industry36 beautiful industry21 beautiful industry37 beautiful industry06 beautiful industry22 beautiful industry38 beautiful industry07 beautiful industry15 beautiful industry16 beautiful industry23 beautiful industry31 beautiful industry32 beautiful industry39 beautiful industry08 beautiful industry27 beautiful industry19 beautiful industry24 beautiful industry40

Fumed White Oak

fumed oak09 fumed oak08 fumed oak05 fumed oak06 fumed oak07 fumed oak04 fumed oak03 fumed oak02 fumed oak01 fumed oak10DSC_0360DSC_0372 fumed oak11 fumed oak12 fumed oak13 fumed oak14 fumed oak20 fumed oak19 fumed oak23 fumed oak22 fumed oak24 fumed oak17 fumed oak16
The above are eight turned pieces from a single 24″ section of a 24″ diameter white oak from Boaz, Kansas. The tree fell over and across the Van Horn Branch Creek about 10 years ago- We finally pulled the log out 2 years ago, and it has laid in my log pile since then, although I did mill a portion of it. The heart wood is still green, so these bowls were turned green and allowed to warp as they dried. Ultimately all the pieces were exposed to ammonia vapors (fumed) which reacted to the tannins in the wood, darkening the surfaces.

Champion Table Build, Part 4: Base & Arc

base arc01

preparing to fit the base to the leg assembly

base arc03

defining a semicircle with 3 saw cuts

base arc02

3 saw cuts get refined into facets with a paring chisel

base arc04

and again

base arc05

then shaped with a rasp

base arc06

the base of one of the leg assemblies after the 1/2 lap-tapered dado has been cut

base arc07

here, mated with the white oak leg

base arc09

a different piece of white oak being shaped with a rasp, one of three slats joining the top of the leg assemblies together and to the table top

base arc08

the slats also receive a long bevel

base arc10

the slats will rest in the notches being cut into the top of this leg section

base arc11

clearing out material from the notch with a 1″ chisel

base arc12

establishing the final depth with a router plane

base arc13

here the slats are temporarily in place

base arc14

an arsenal of shaping tools to begin sculpting the legs

base arc16

shaping inside-curves of the leg assembly with an aggressive rasp

base arc17

forming a radius where the legs meet the base

base arc18

the preliminary drawings had a horizontal stretcher connecting the two leg assemblies at floor level. Having rough-shaped the components and taking a look, I started visualizing an arc instead. PVC pipe (already bent from a previous life in some low garden tunnels) offered a quick prototype to help see how it would look.

base arc19

the arc made sense, so now setting about squaring up a white oak timber for re-sawing

base arc20

re-sawn white oak and a glue-lamination form ready to make an arc

base arc21

the glue lamination in the form- my 8 year old son was indispensable in this process, helping to roll glue, assemble, and clamp

base arc22

rhythm is in unity to woodwork

base arc23

the white oak timber, reconfigured as a messy arc

base arc24

work for the jack plane

base arc26

now the smoothing plane

base arc25

cutting the tapers along the length of the arc at the band saw

base arc28

marking the taper at the width

base arc29

cutting the taper at the width

base arc30

more elbow grease with the smoothing plane

base arc31

shaping the many curves and facets along the arc, first with a drawknife

base arc32

then with spokeshave

base arc33

establishing details with knife

base arc34

facets ease into curves

base arc35

test fitting- some refining-shaping to go yet

base arc36

setting the location of the chamfers on the leg-base

base arc38

shaving away rasp markings

base arc39

carving corner transitions

base arc37

so many details to bring together- here the leg base is about done.

That’s it for this round- next week there will be lots of sanding, also carving and inlay work as the table finally starts to become unified. Thank you to everyone for following along, and for your encouraging comments.
