The six and a half inch thick, 13 foot long walnut slab filled the shop as it came from the chainsaw mill.
Beam cutter on the old worm-drive

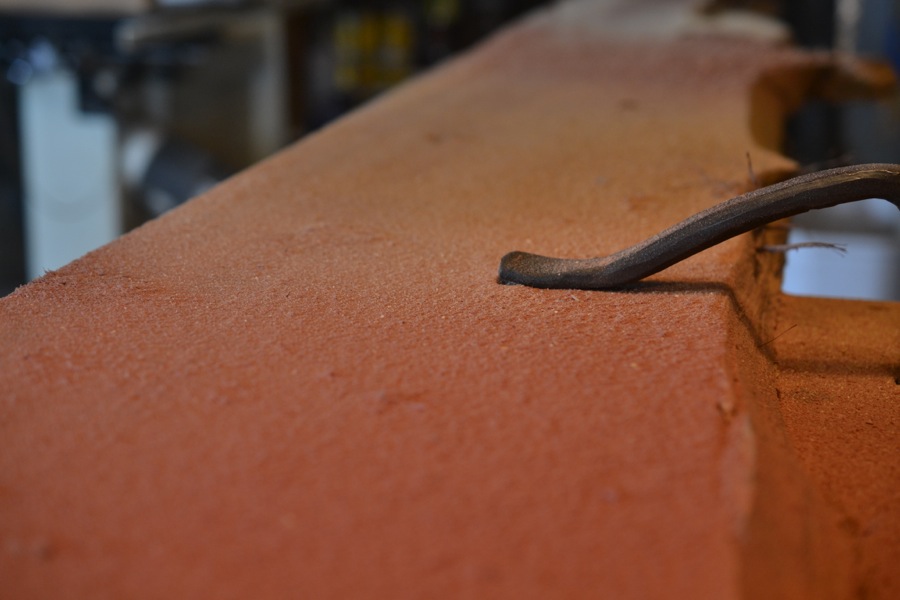

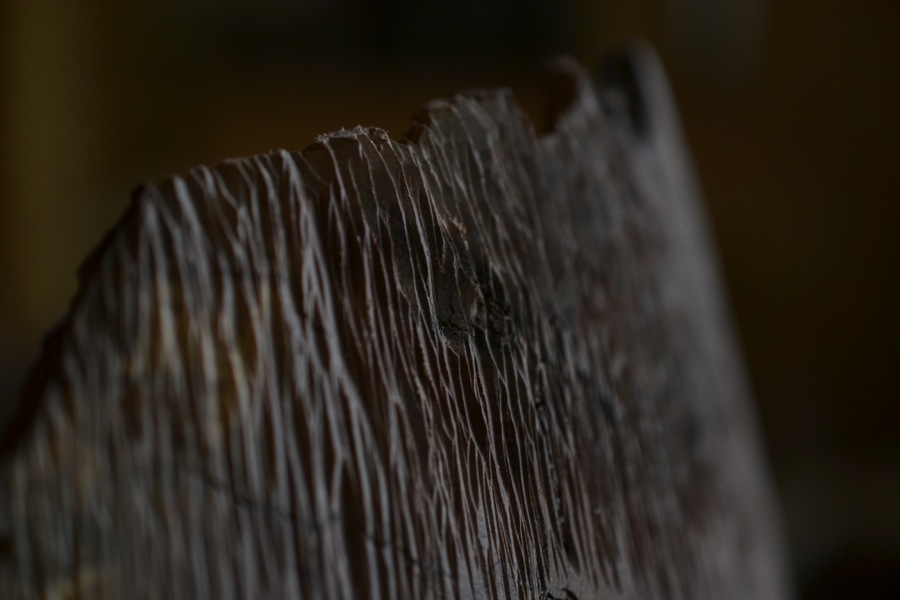

“rough-sawn” to the max

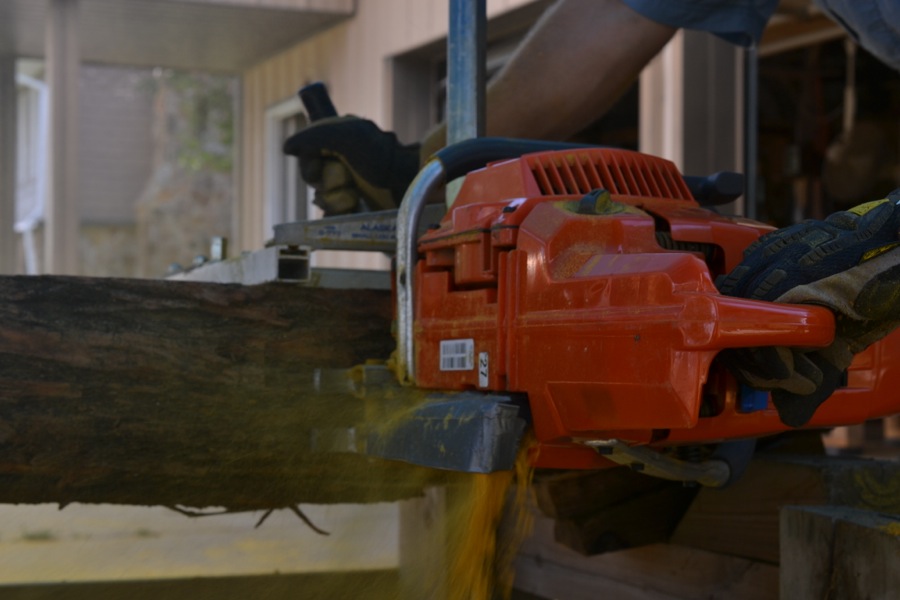

Using the “beam-cutter” to rip the slab into a six inch square timber
Pulling the saw at the end of the cut to save the last bit of slab for the corbels

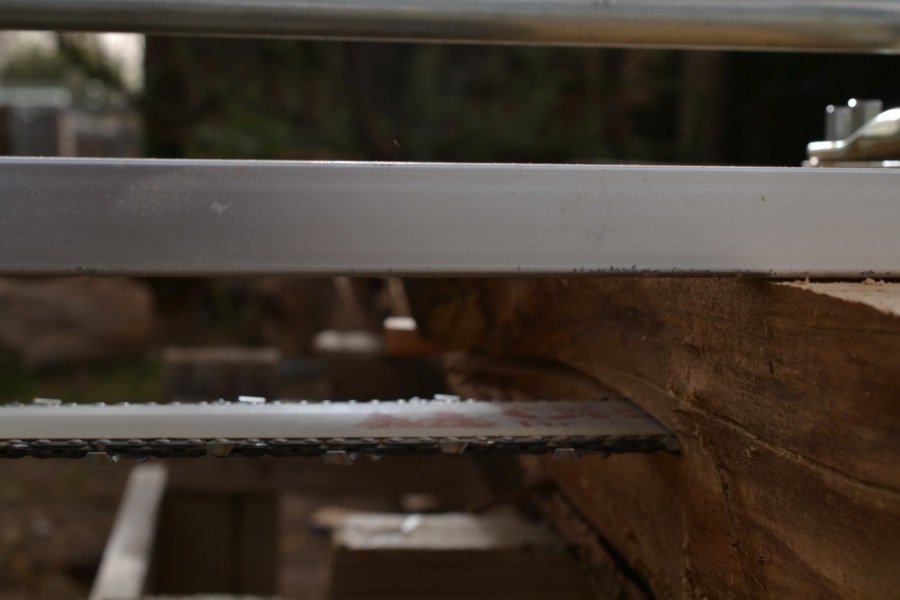

Aluminum C-channel as a guide
start of the smoothing
a jack plane with a radius set to take heavy shavings
Now the joiner
pretty obvious
chopping out for a patch over a rotten knot
the same, fitted
filing the edges of a little copper butterfly template
bench-top with tools for making butterfly templates

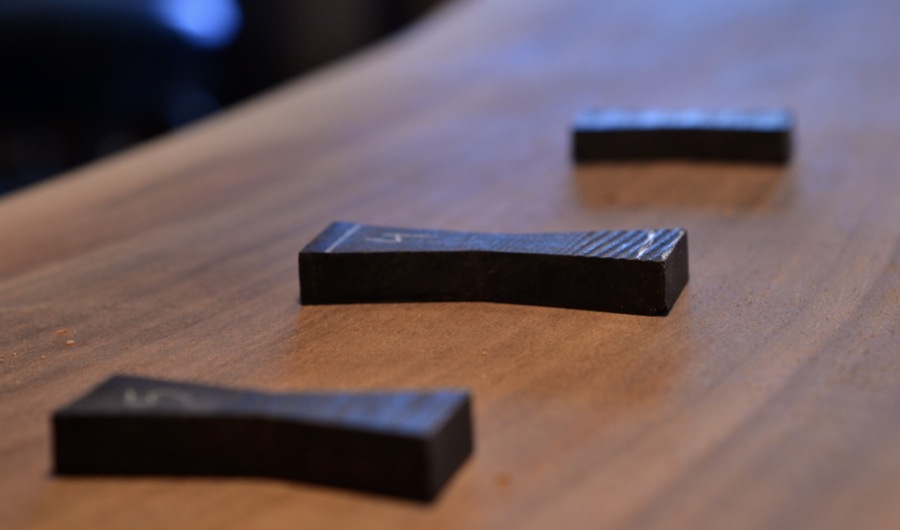

variety of butterfly templates

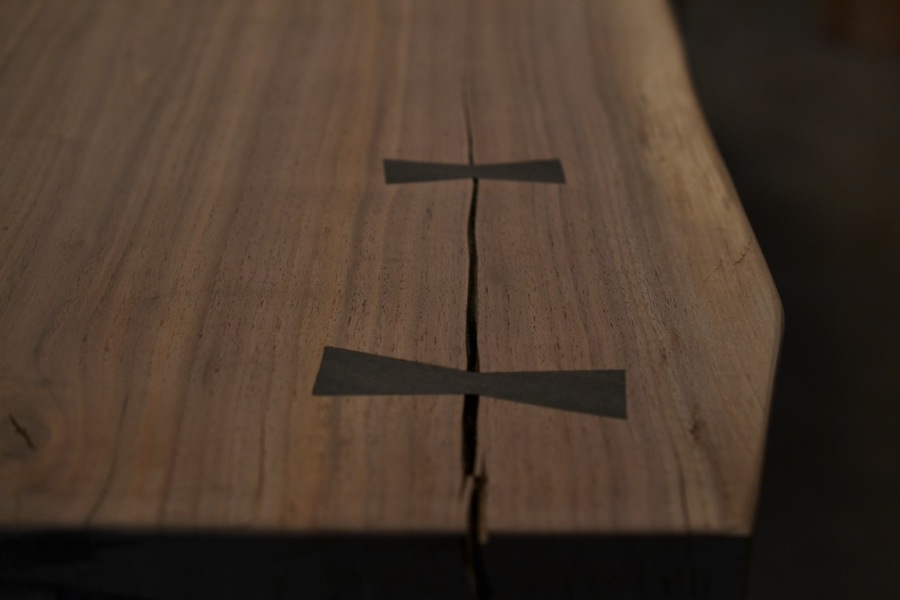

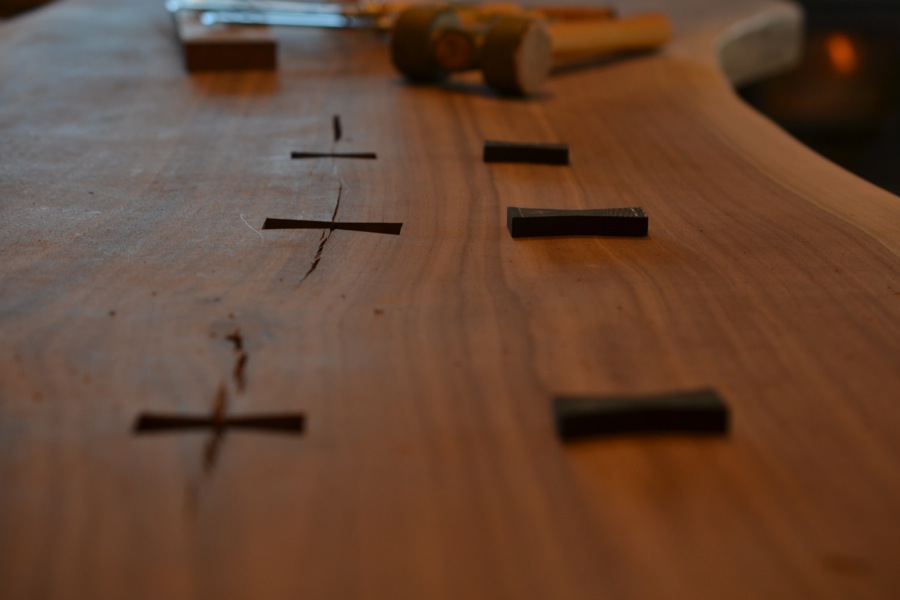

Scribing the timber for butterflies to bind the main check

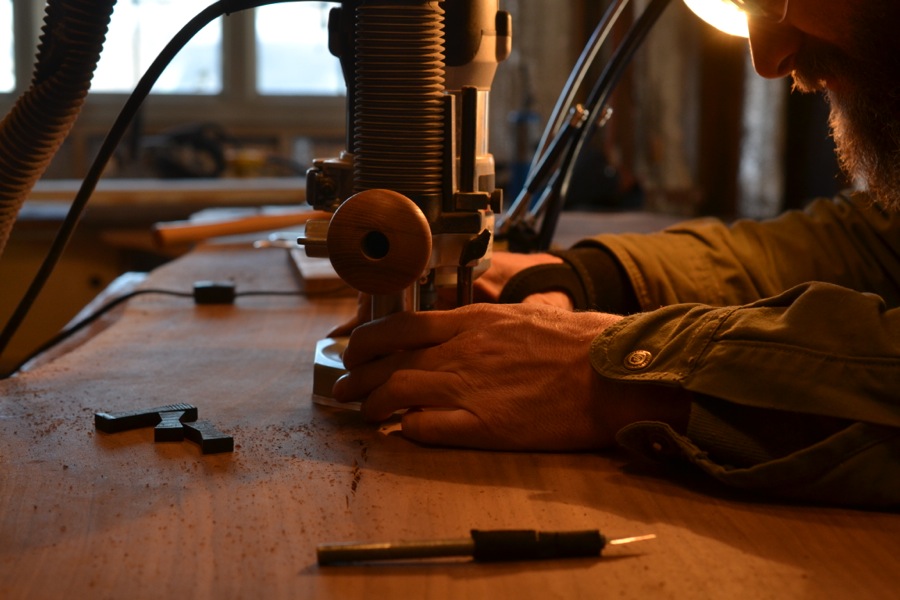

Routing out the waste

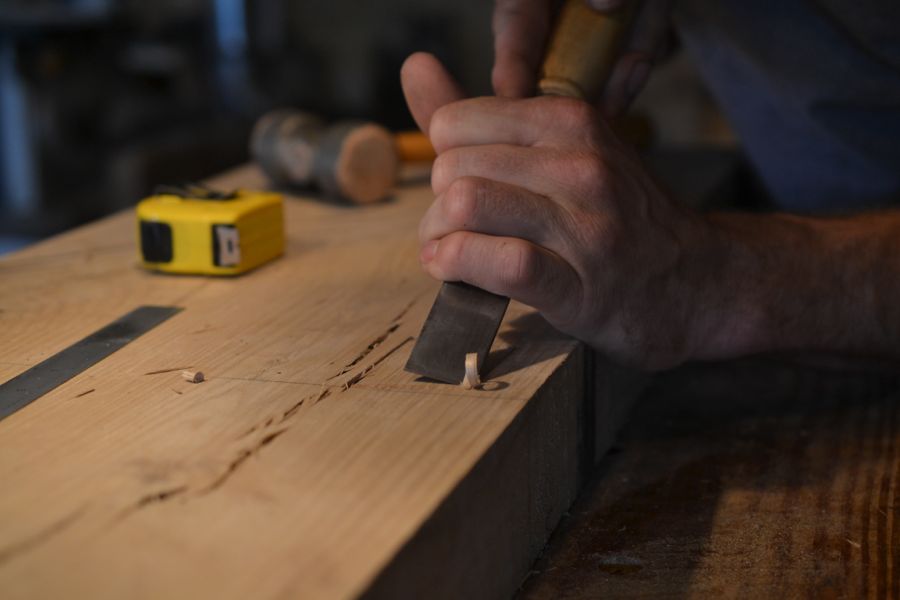

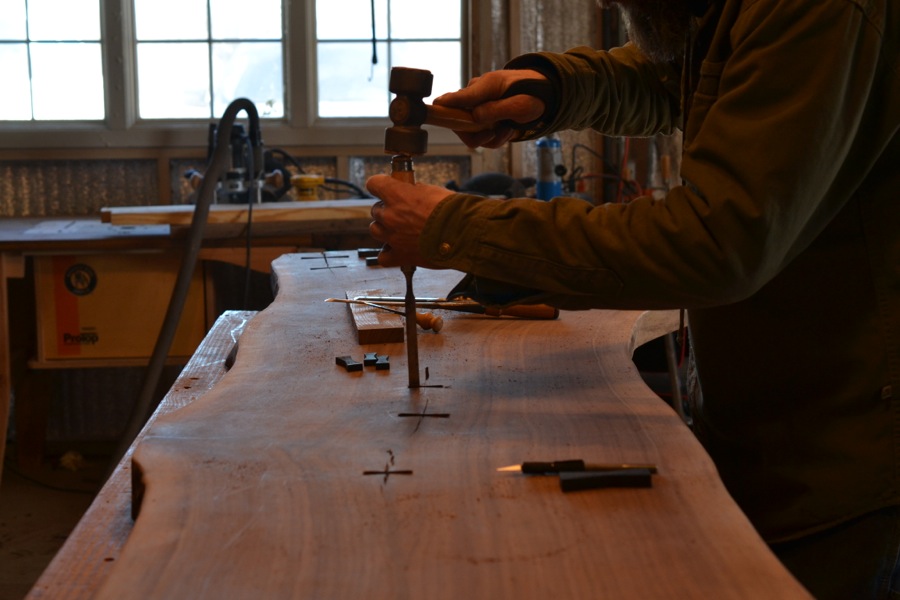

chopping the rest
right up to the knife line
ready for the joining
carving the corbels (my documentation fell off for most of this process)
mating the various natural edges of the corbels to the mantel
a little further back
fitting the opposite corbel
rough-cut cove on the left corbel

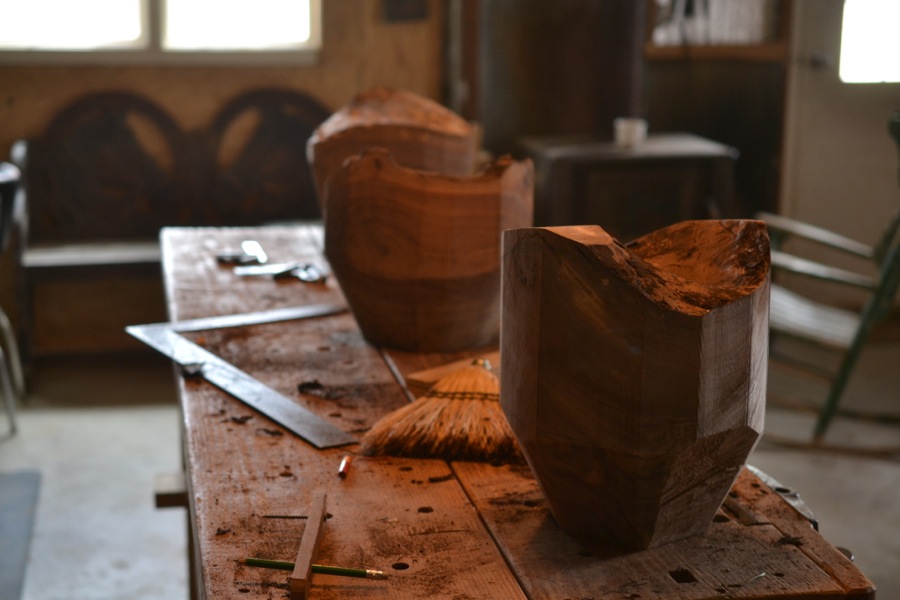

both corbels with coves-cut and awaiting final shaping
apply the final touches on the ends of the timber
“C” for the covenant
installed over the fire box, and the home-owner’s sandstone work.
I look forward to seeing it with the stone work done
