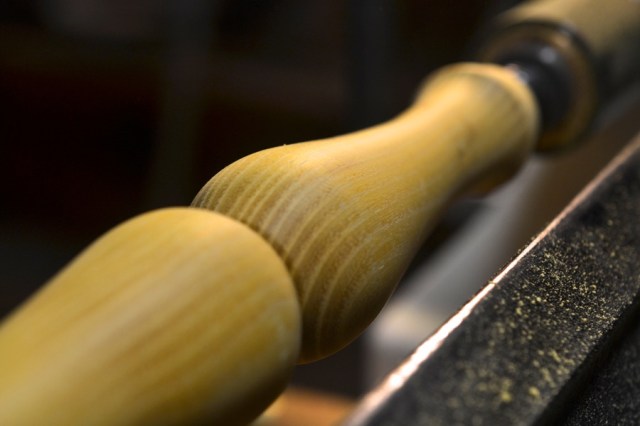

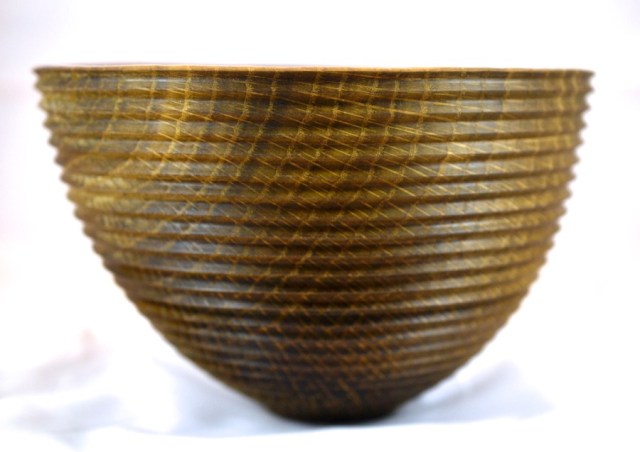

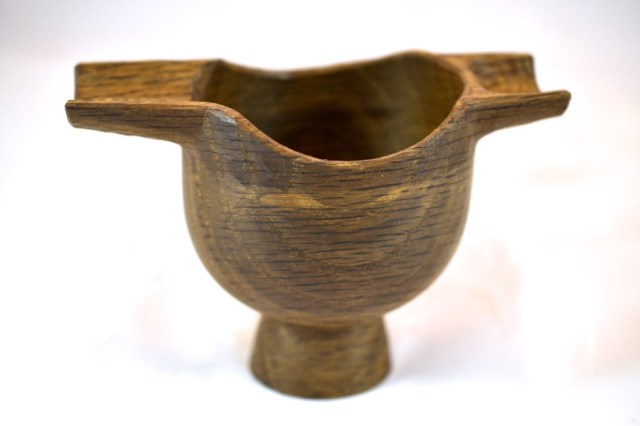

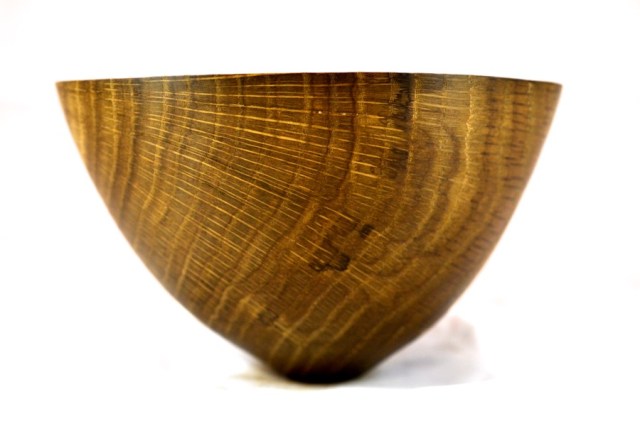

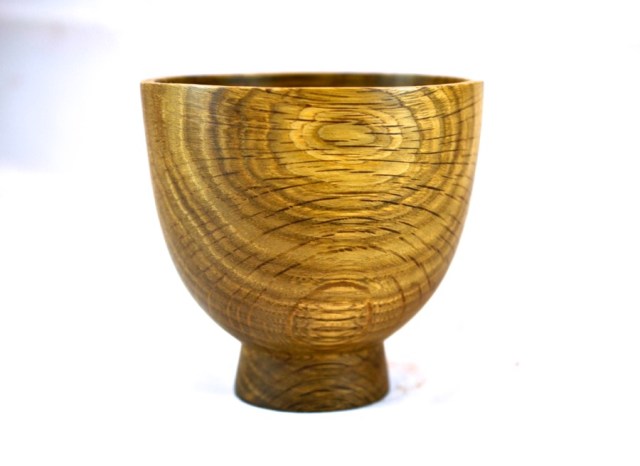

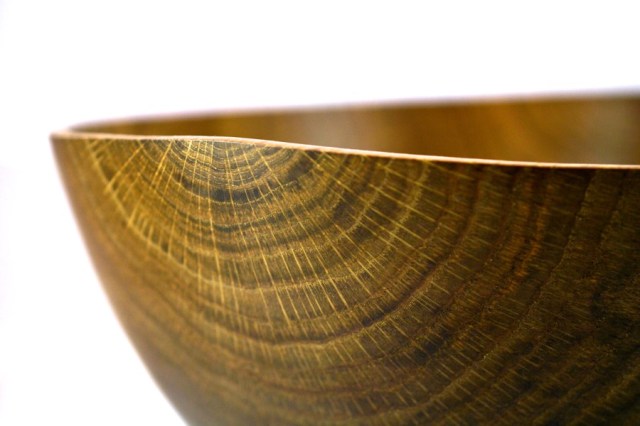

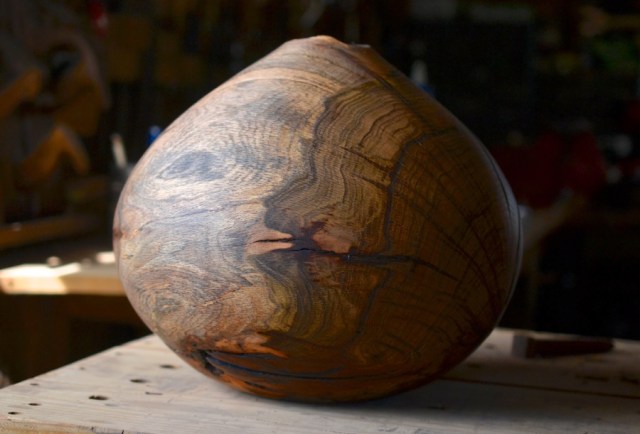

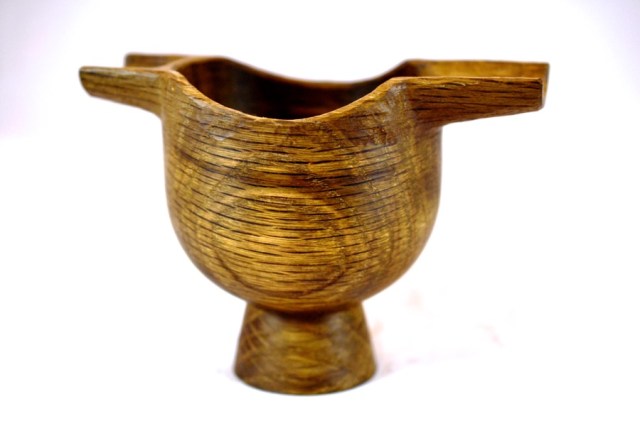

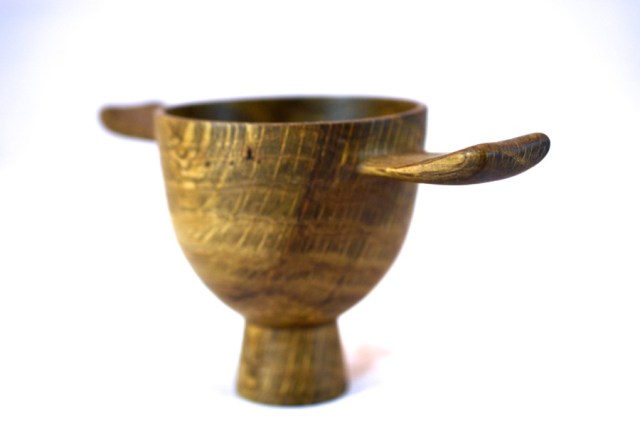

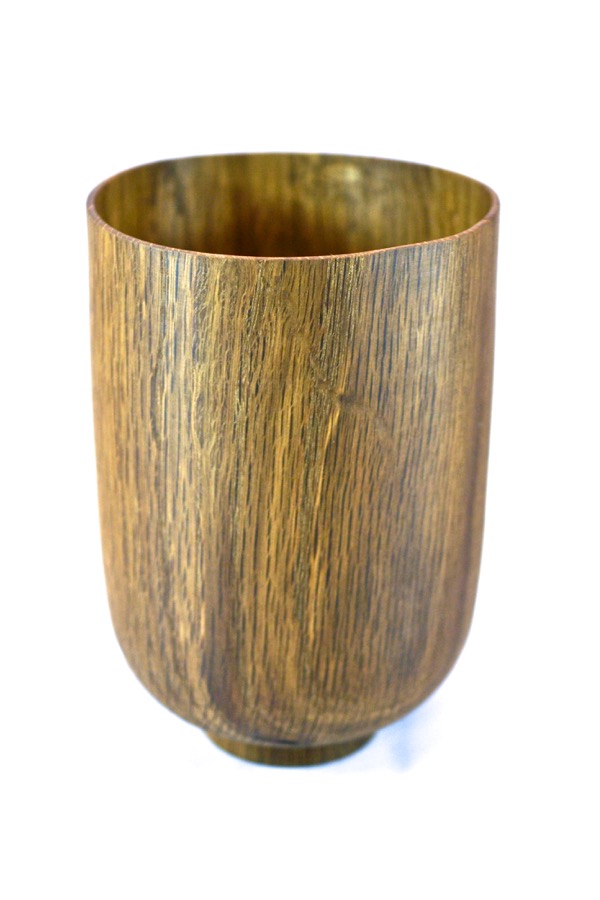

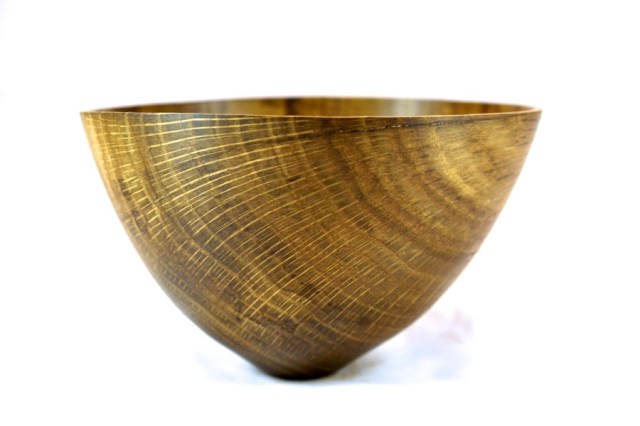

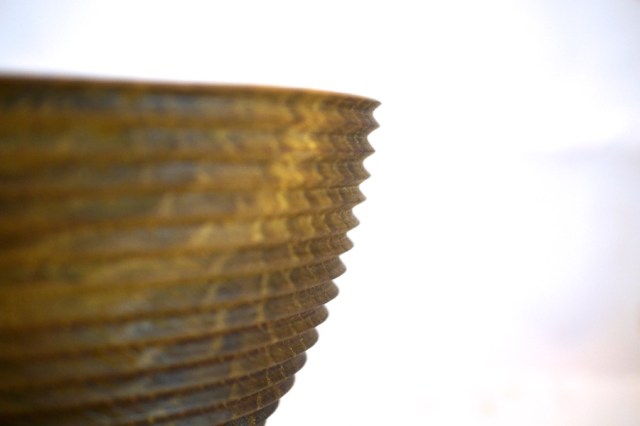

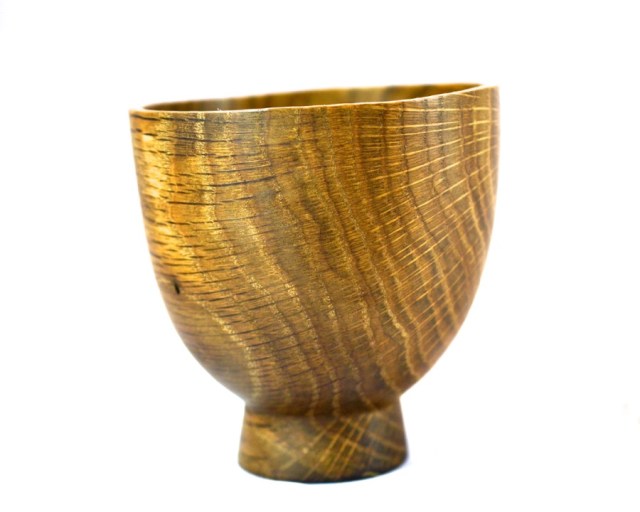

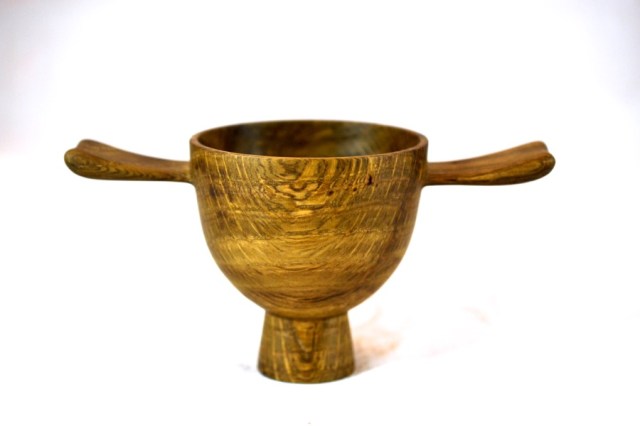

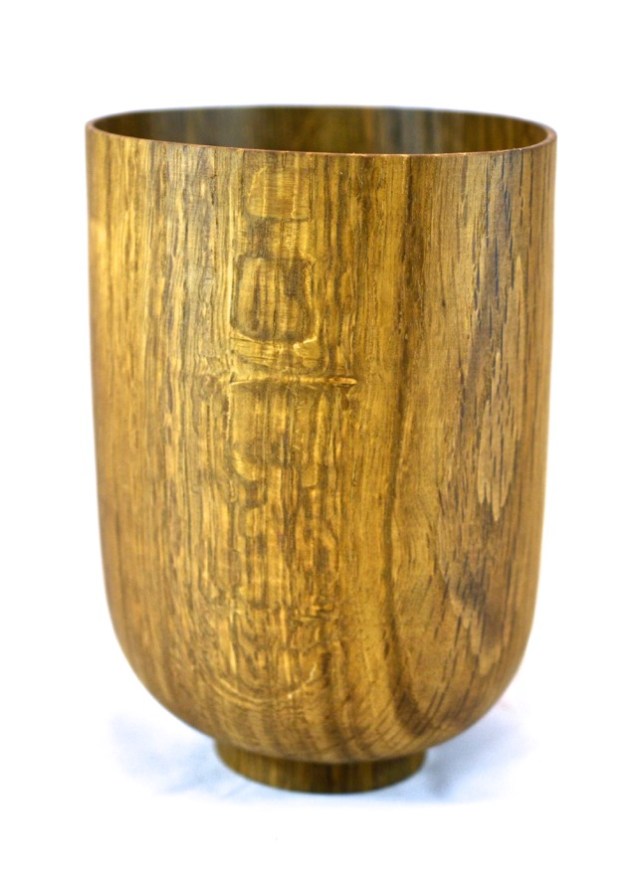

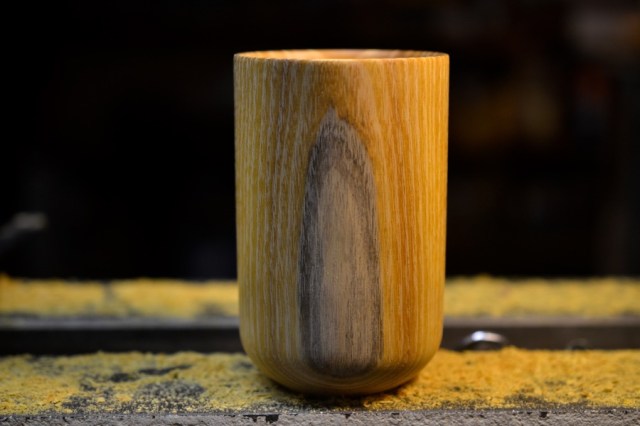

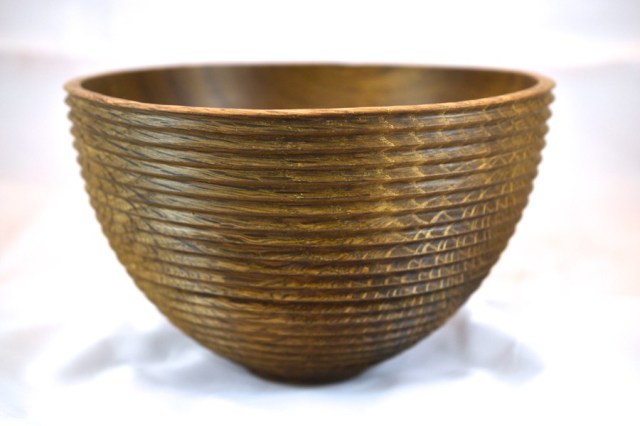

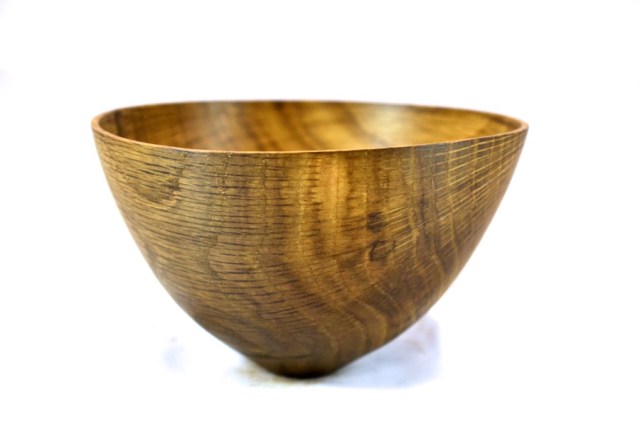

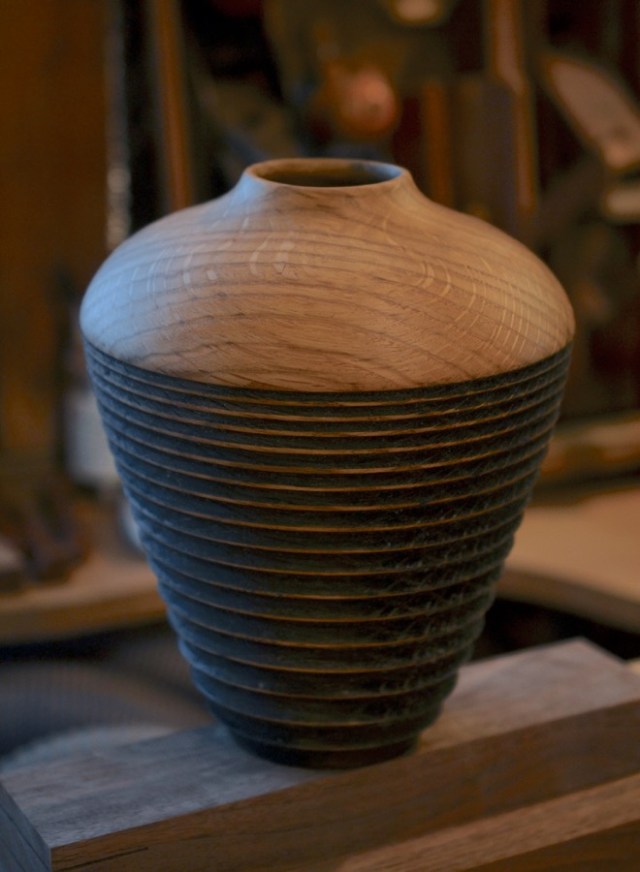

The above are eight turned pieces from a single 24″ section of a 24″ diameter white oak from Boaz, Kansas. The tree fell over and across the Van Horn Branch Creek about 10 years ago- We finally pulled the log out 2 years ago, and it has laid in my log pile since then, although I did mill a portion of it. The heart wood is still green, so these bowls were turned green and allowed to warp as they dried. Ultimately all the pieces were exposed to ammonia vapors (fumed) which reacted to the tannins in the wood, darkening the surfaces.

Champion Table Build, Part 4: Base & Arc

base arc01

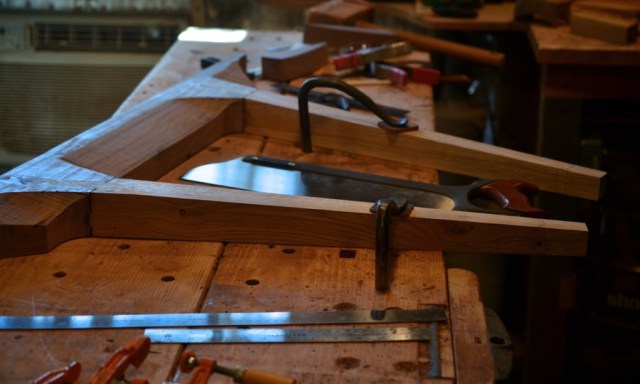

preparing to fit the base to the leg assembly
base arc03
defining a semicircle with 3 saw cuts
base arc02
3 saw cuts get refined into facets with a paring chisel
base arc04
and again
base arc05

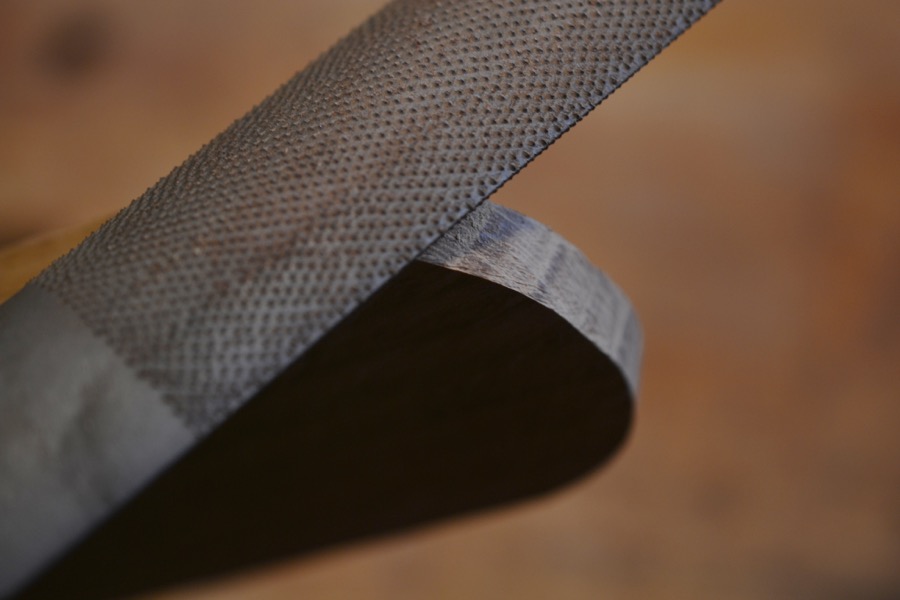

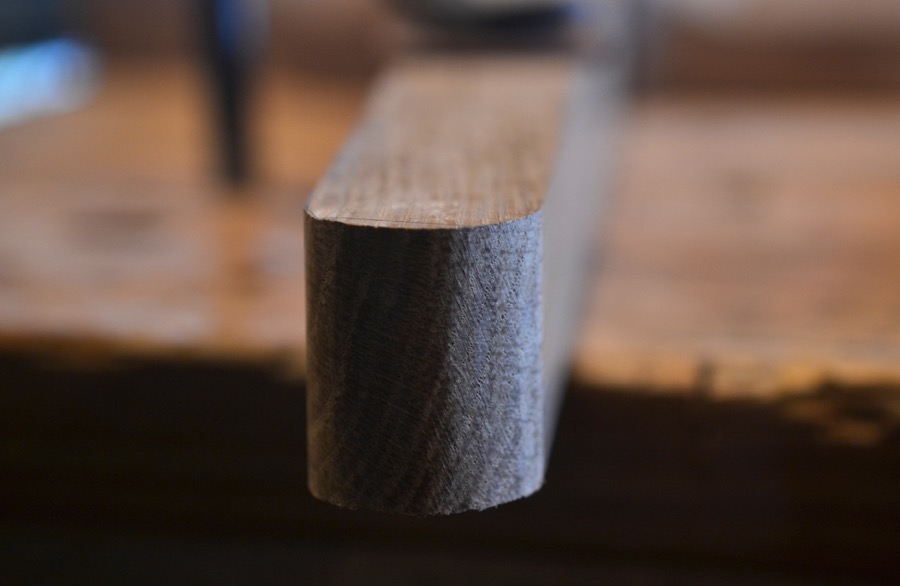

then shaped with a rasp
base arc06
the base of one of the leg assemblies after the 1/2 lap-tapered dado has been cut
base arc07

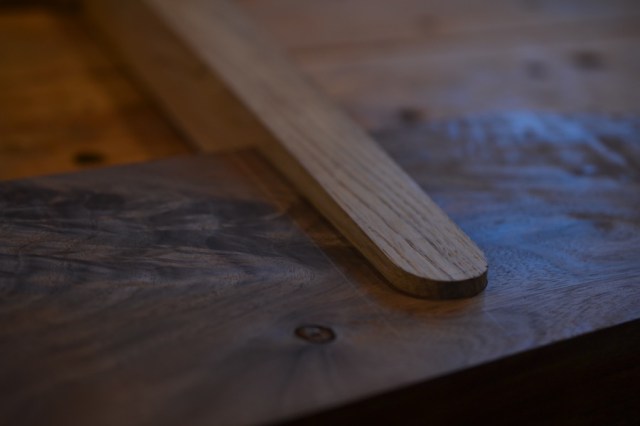

here, mated with the white oak leg
base arc09
a different piece of white oak being shaped with a rasp, one of three slats joining the top of the leg assemblies together and to the table top
base arc08
the slats also receive a long bevel

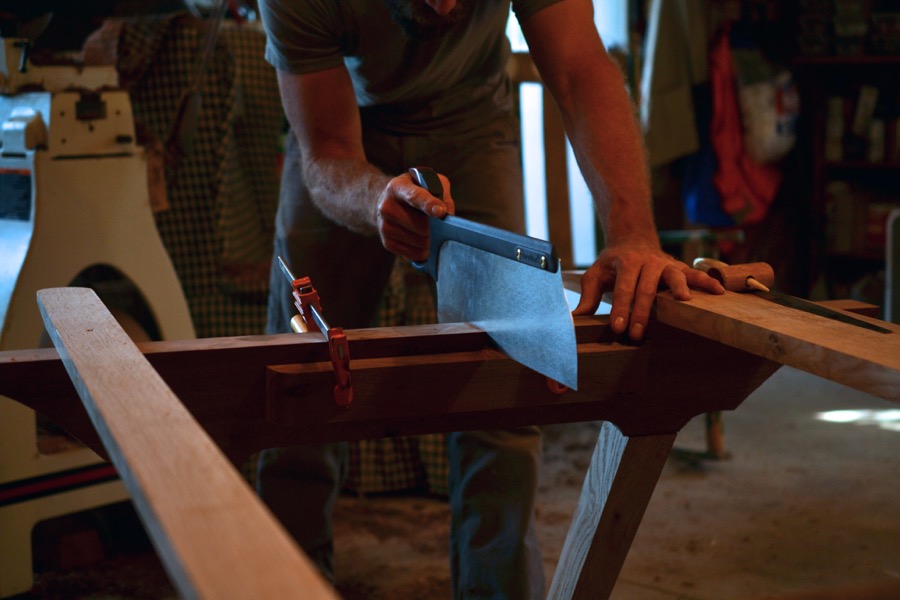

base arc10
the slats will rest in the notches being cut into the top of this leg section
base arc11

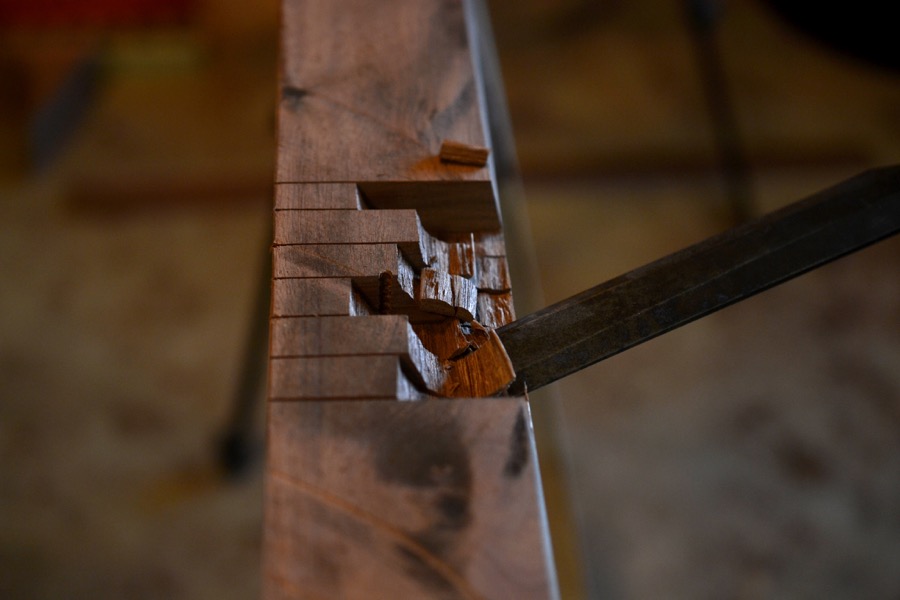

clearing out material from the notch with a 1″ chisel
base arc12
establishing the final depth with a router plane
base arc13
here the slats are temporarily in place
base arc14

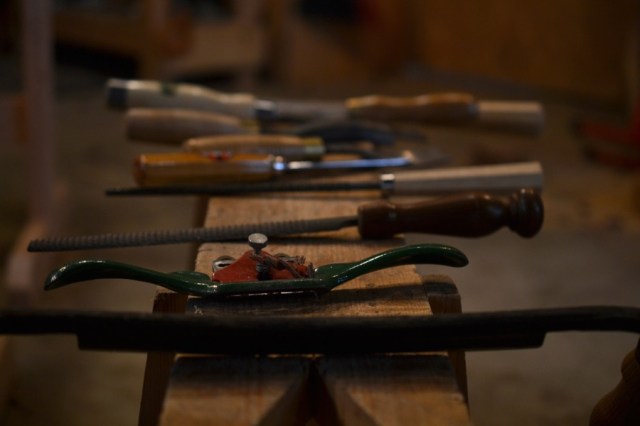

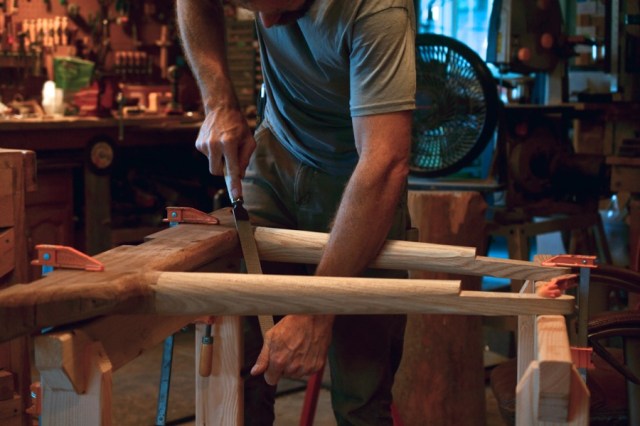

an arsenal of shaping tools to begin sculpting the legs
base arc16

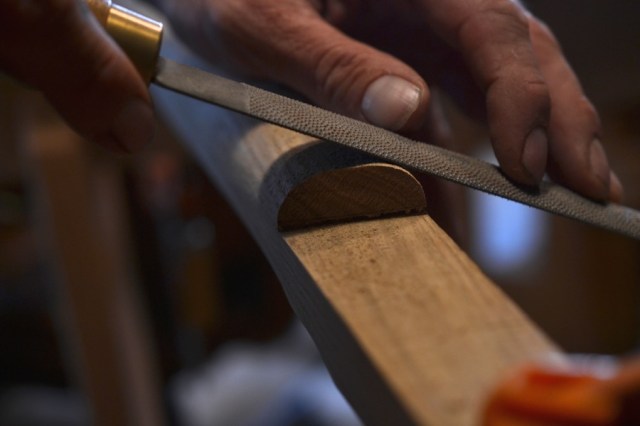

shaping inside-curves of the leg assembly with an aggressive rasp
base arc17
forming a radius where the legs meet the base
base arc18

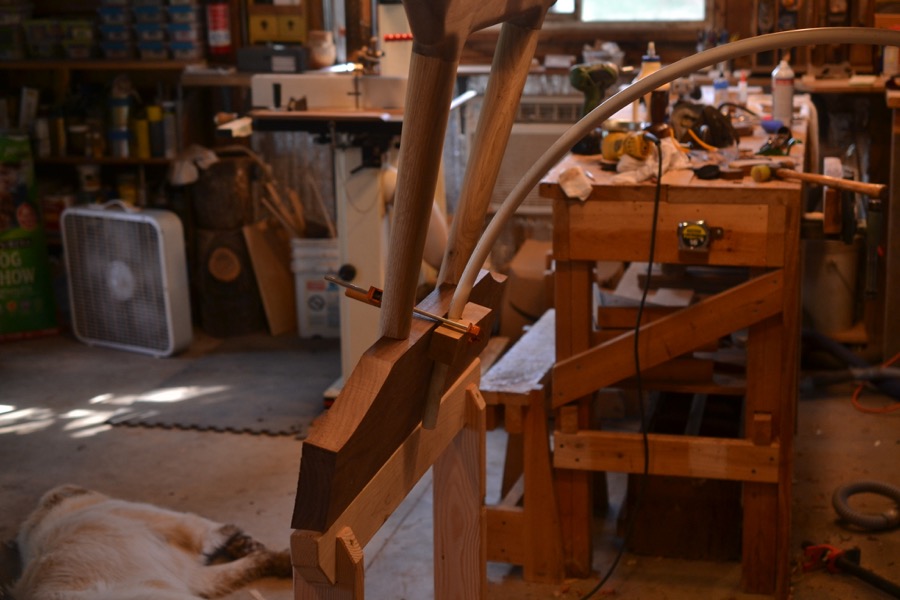

the preliminary drawings had a horizontal stretcher connecting the two leg assemblies at floor level. Having rough-shaped the components and taking a look, I started visualizing an arc instead. PVC pipe (already bent from a previous life in some low garden tunnels) offered a quick prototype to help see how it would look.
base arc19
the arc made sense, so now setting about squaring up a white oak timber for re-sawing
base arc20
re-sawn white oak and a glue-lamination form ready to make an arc
base arc21

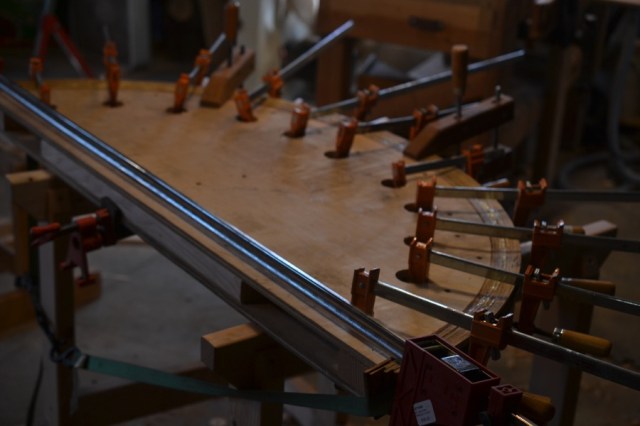

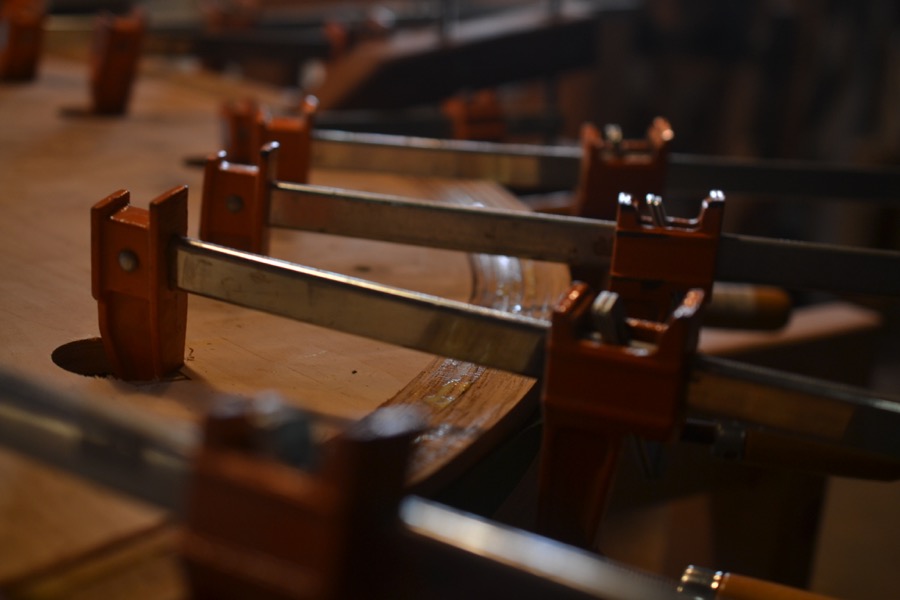

the glue lamination in the form- my 8 year old son was indispensable in this process, helping to roll glue, assemble, and clamp
base arc22
rhythm is in unity to woodwork
base arc23
the white oak timber, reconfigured as a messy arc

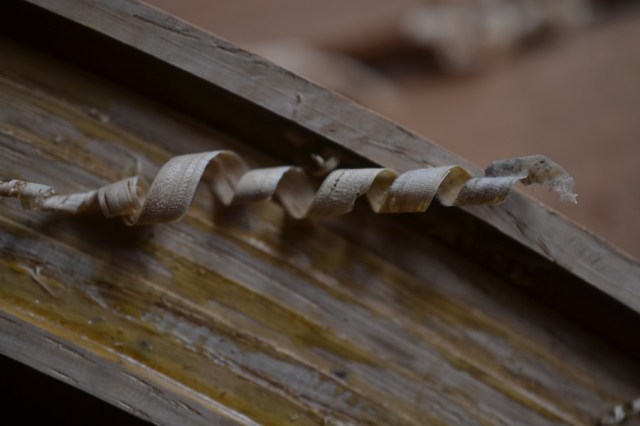

base arc24
work for the jack plane
base arc26

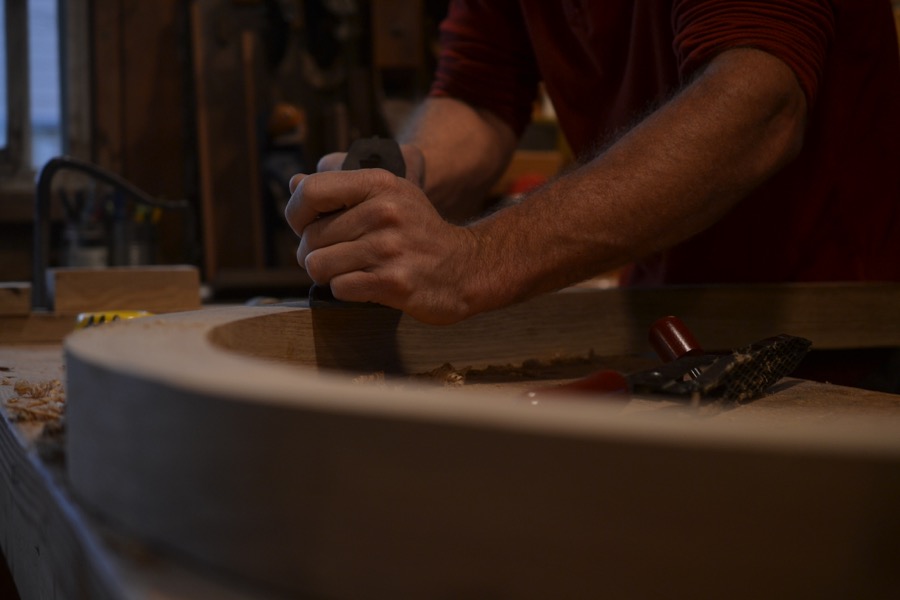

now the smoothing plane
base arc25

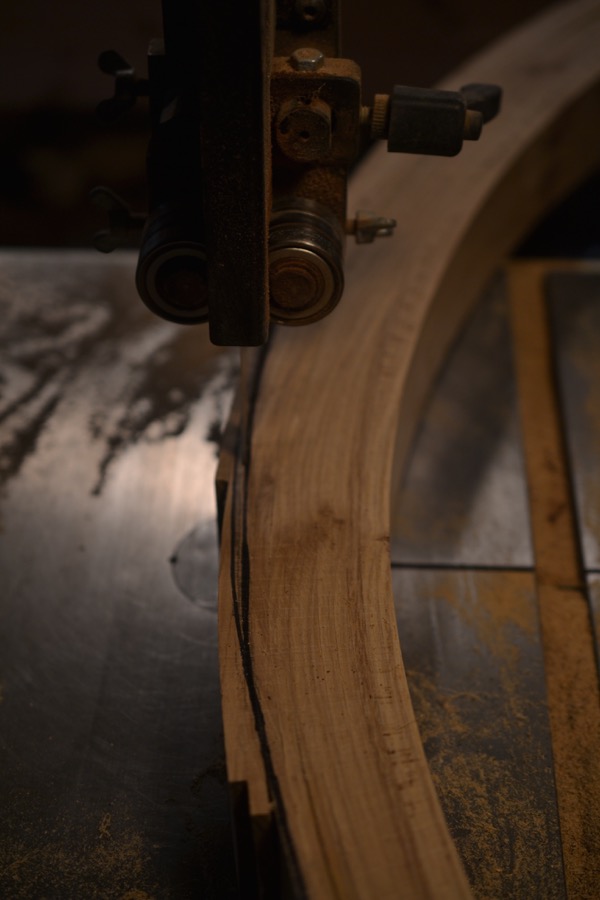

cutting the tapers along the length of the arc at the band saw

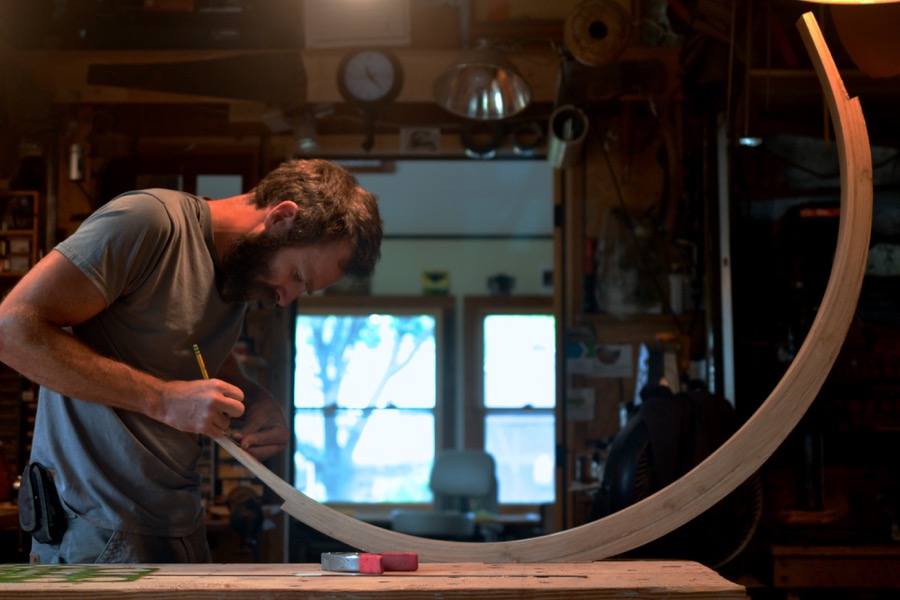

base arc28
marking the taper at the width
base arc29
cutting the taper at the width
base arc30

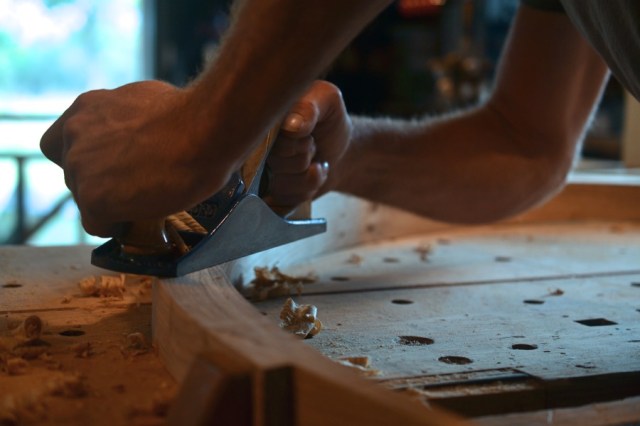

more elbow grease with the smoothing plane
base arc31

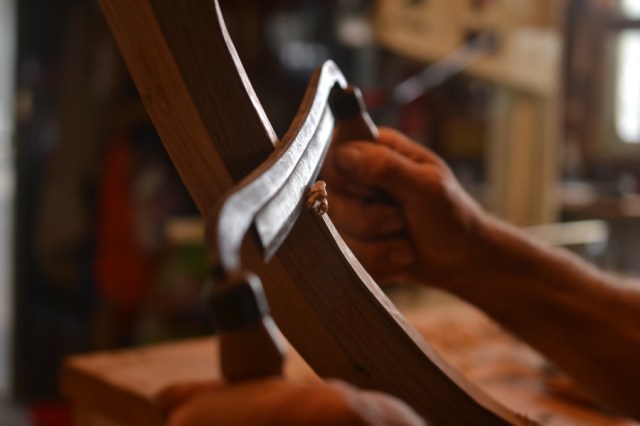

shaping the many curves and facets along the arc, first with a drawknife
base arc32

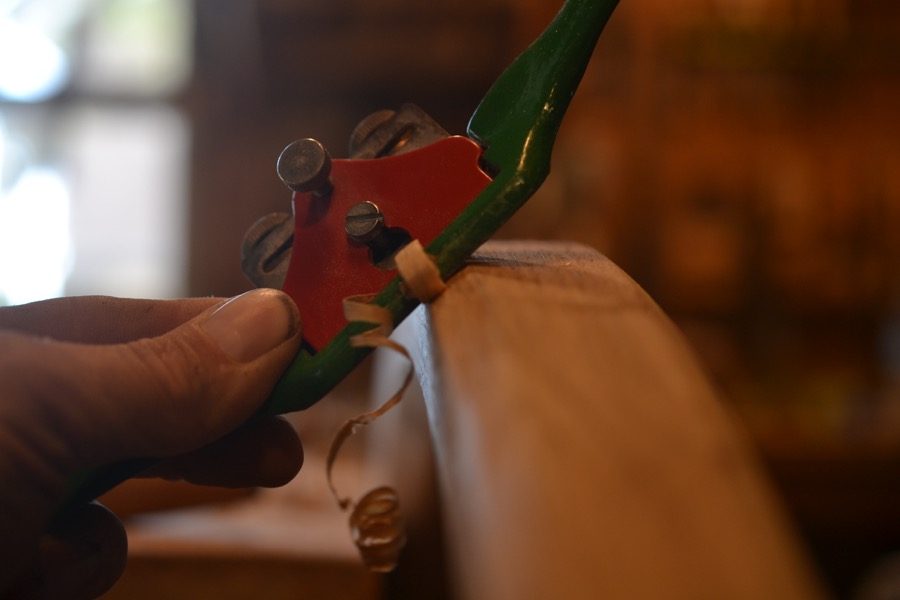

then with spokeshave
base arc33

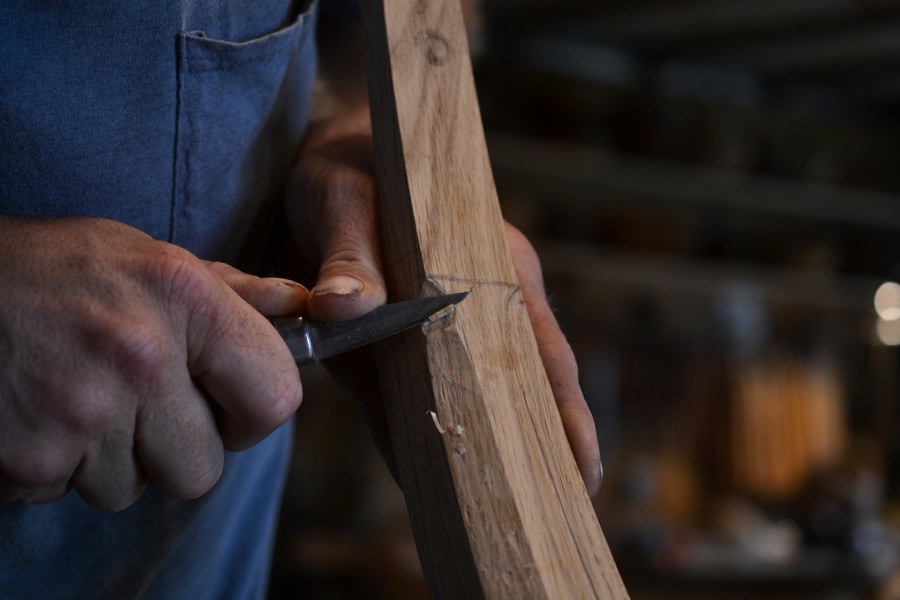

establishing details with knife
base arc34
facets ease into curves
base arc35

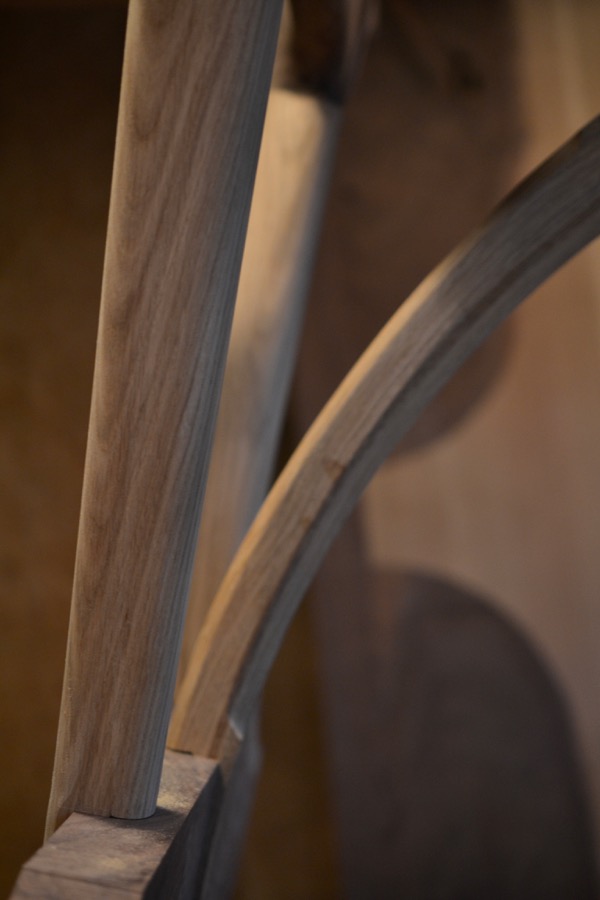

test fitting- some refining-shaping to go yet
base arc36
setting the location of the chamfers on the leg-base
base arc38

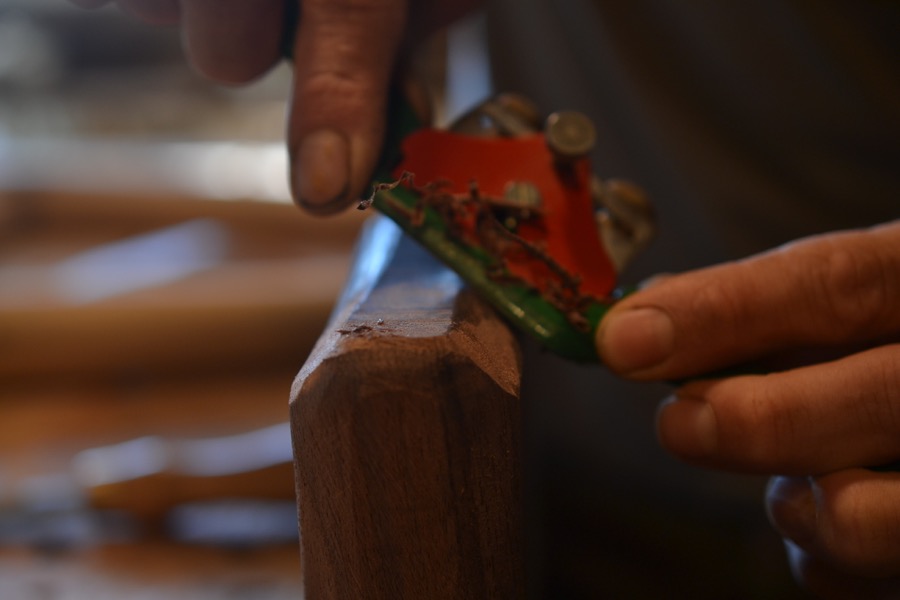

shaving away rasp markings
base arc39

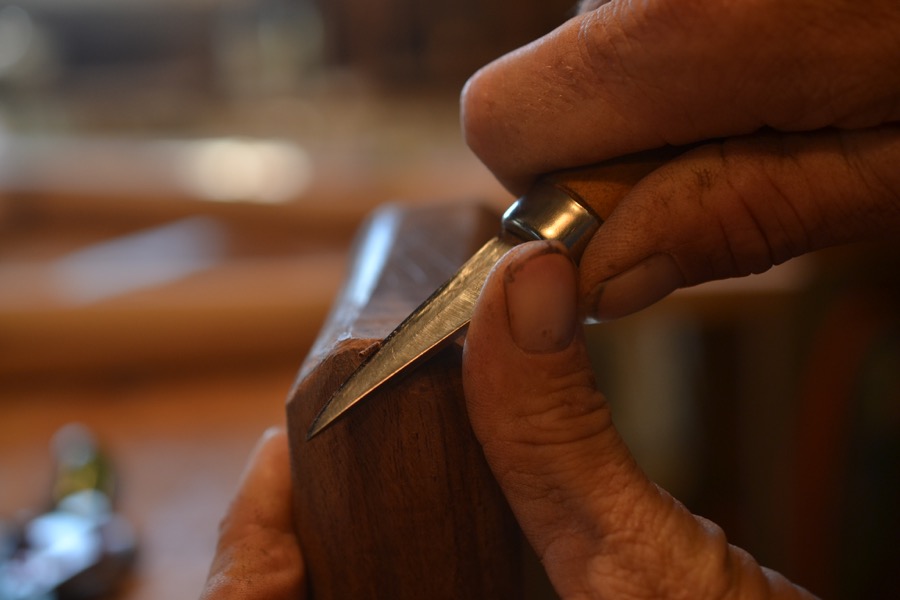

carving corner transitions
base arc37
so many details to bring together- here the leg base is about done.

That’s it for this round- next week there will be lots of sanding, also carving and inlay work as the table finally starts to become unified. Thank you to everyone for following along, and for your encouraging comments.

The Champion Table Build, Part 3: Leg Joinery

champion table 301
flattening walnut stock with a wooden joiner for the top rails of the leg assembly
champion table 302
using winding-sticks to make sure there is no twist in the board
champion table 303
finishing up with a #7 jack plane
champion table 304

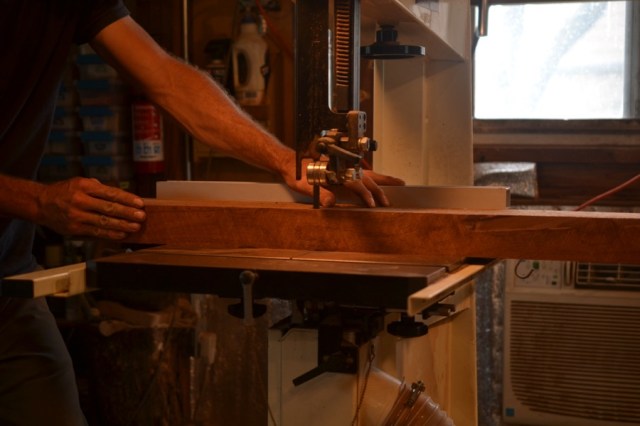

squaring up the remaining edges and dimensioning the walnut on the bandsaw
champion table 307
layout lines
champion table 308
initial shaping of the curves on the top rail of the legs
champion table 309
testing it against the table-top

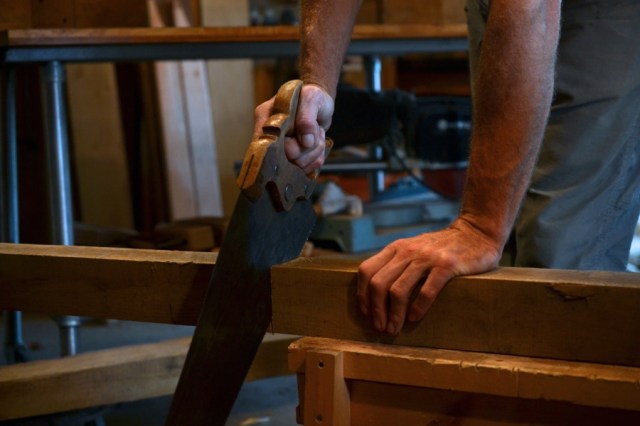

champion table 310
sawing lengths of white-oak for the vertical posts of the leg assembly
champion table 311

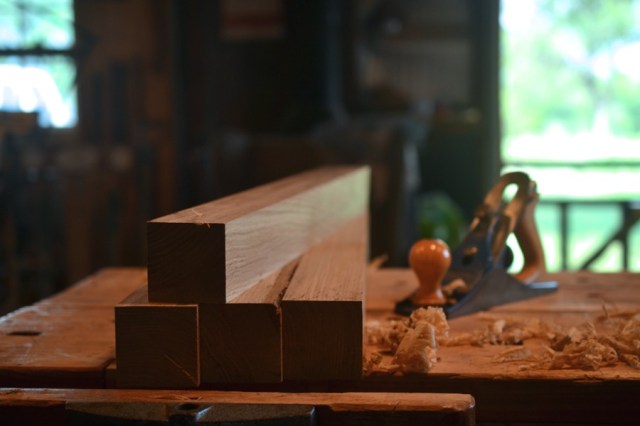

the white oak after squaring-up
champion table 312

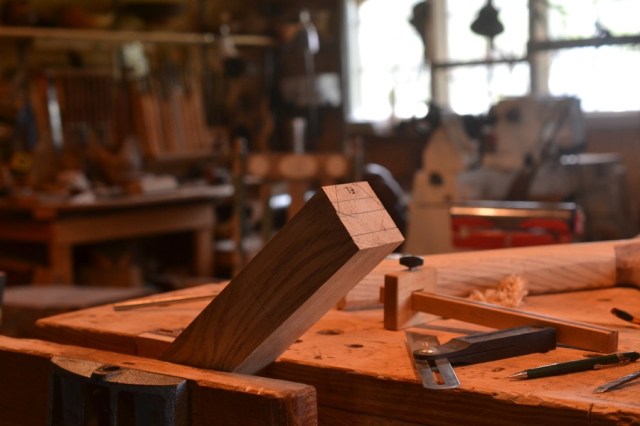

testing the concept and a few angles before committing
champion table 316
laying out the leg joints
champion table 317
establishing the sliding dovetail angle with a knife
champion table 318
cutting the front of the sliding dovetail
champion table 319
all the bandsaw work done, now the hand-tools will finish
champion table 320

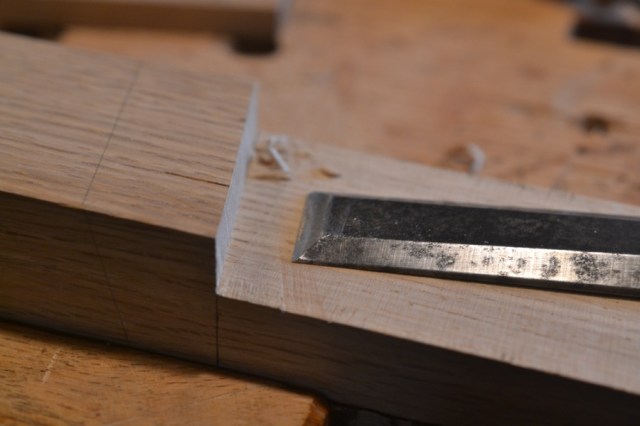

paring the back cheek of the tenon
champion table 321

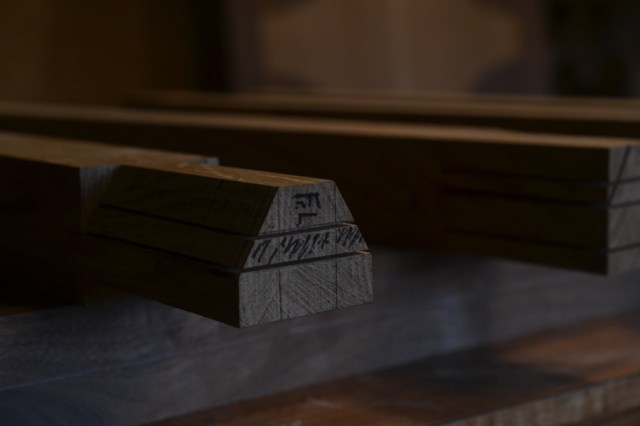

the joint is most of the way there- the waste between the mortise and the dovetail is yet to be removed
champion table 322
the four white oak legs all cut
champion table 323

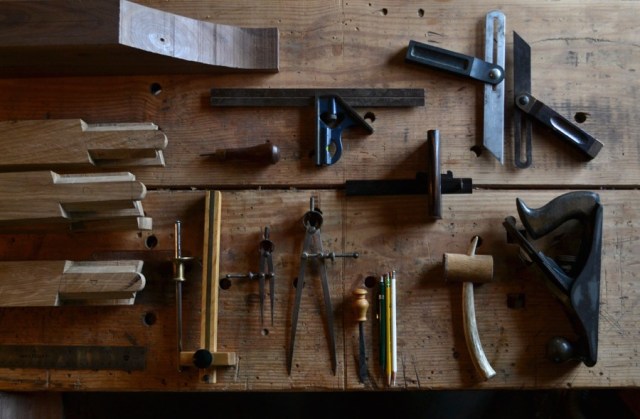

the arsenal of tools to accurately transfer the dimensions of the tenon/ dovetails onto the walnut rails
champion table 306
marking
champion table 324

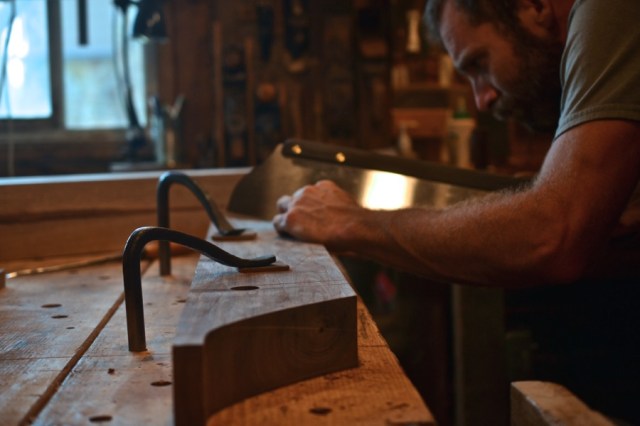

starting the cut for the sliding dovetail socket with a carcass saw
champion table 325
another view cutting sliding dovetail sockets
champion table 326

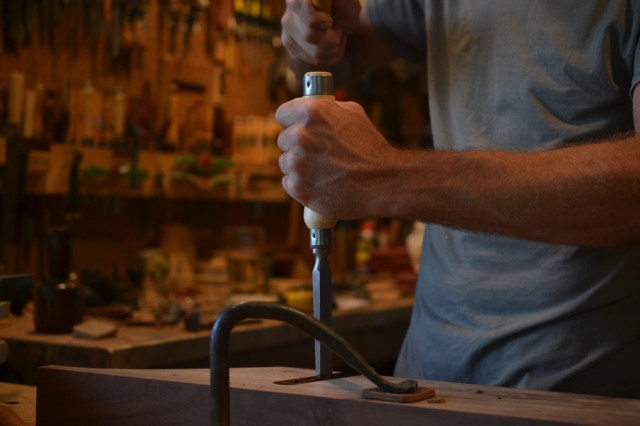

chopping out the waste in the socket
champion table 327
paring the sidewalls unreached by the saw
champion table 328
using a router plane to achieve an accurate floor of the joint- the leg on the cutter allows it to reach the angled corners
champion table 329

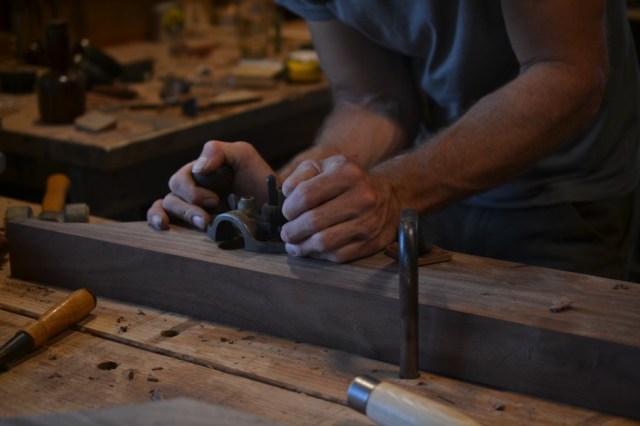

another view of the router-plane
champion table 330

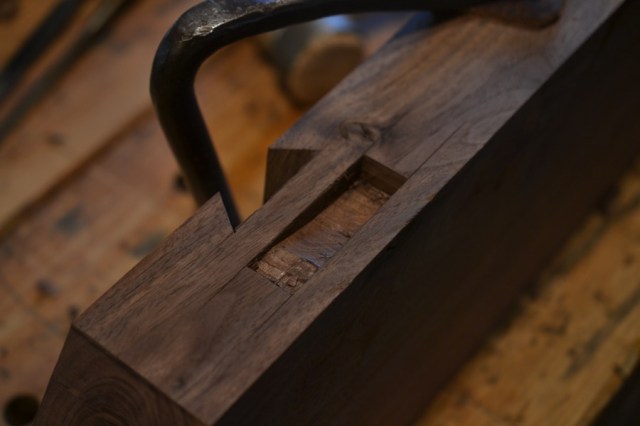

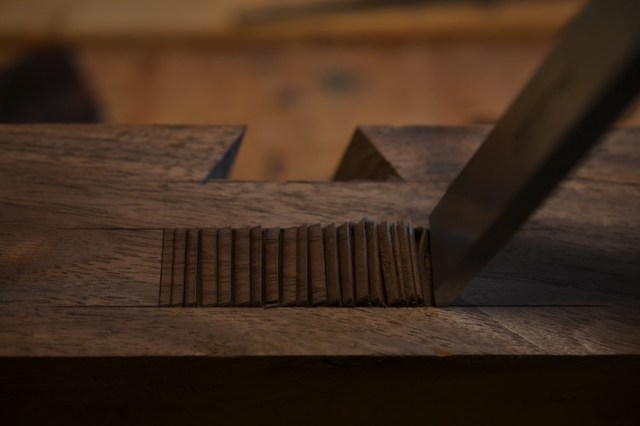

starting the mortise with a 3/4 mortise chisel
champion table 331
the first row is delicate- just establishing the shape and protecting the corners
champion table 332

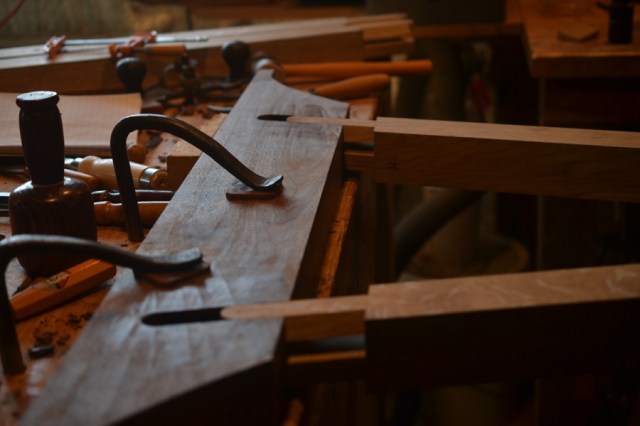

going the full depth of the mortise with an auger – you can see the round-topped sliding dovetail socket parallel to the mortise
champion table 333

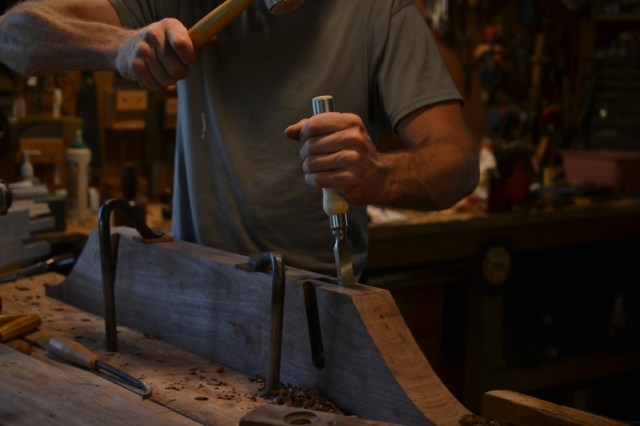

squaring the mortise the rest of the way with the mortise chisel
champion table 336

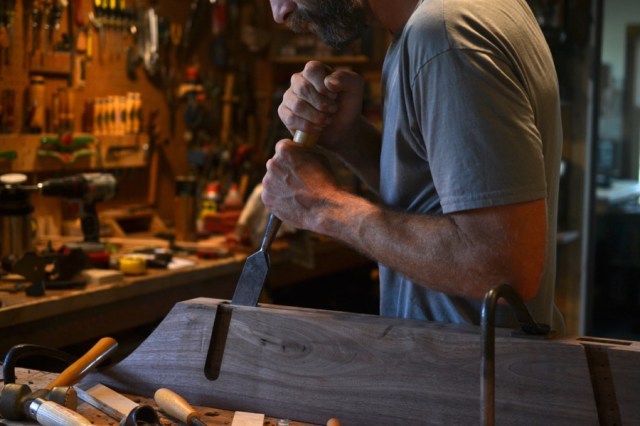

cleaning the sidewalls with my extra-big paring chisel
champion table 334
thank God, they fit!
champion table 335
step one is successful- to get to this point took endless drawings and two complete practice joints and a lot of patience
champion table 313
marking the leg rails for some shaping/ sculpting cuts on the band saw
champion table 337
the top rails post rough-shaping, and the taper of one of the white-oak legs marked with blue tape
champion table 338
dry re-assembly just to make sure
champion table 339
the glue-up
champion table 340

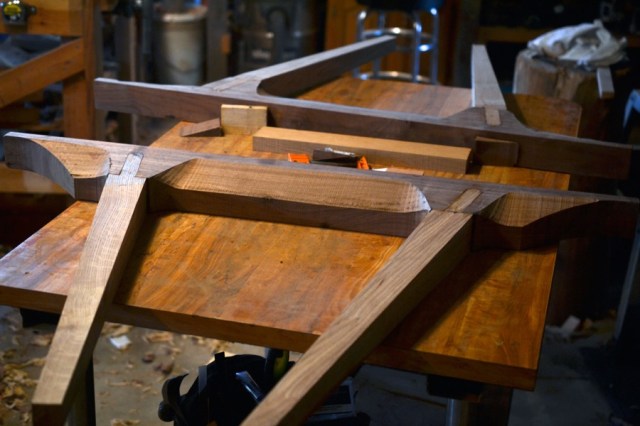

next week will concern the joining of the bottom rail and the final shaping of the leg assemblies

Der Aufbau des Champion-Tisches, Teil 2: Rand

Champion Table Build Part219
surface preparation with a Stanley #80 scraper
Champion Table Build Part218
the swirly walnut grain is difficult to plane but the scraper is able to deal with it efficiently
Champion Table Build Part201

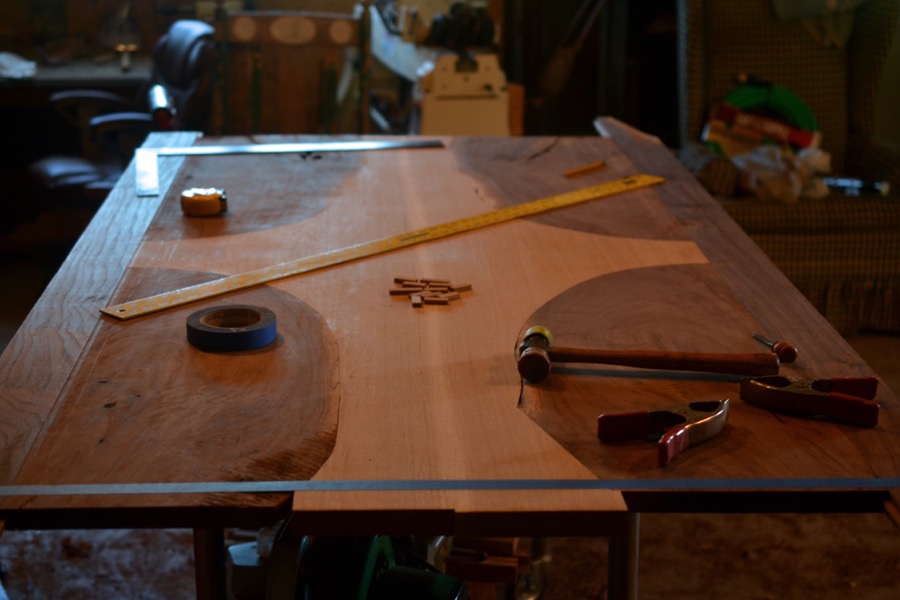

beginning to fit the side rails and bread-board ends
Champion Table Build Part203

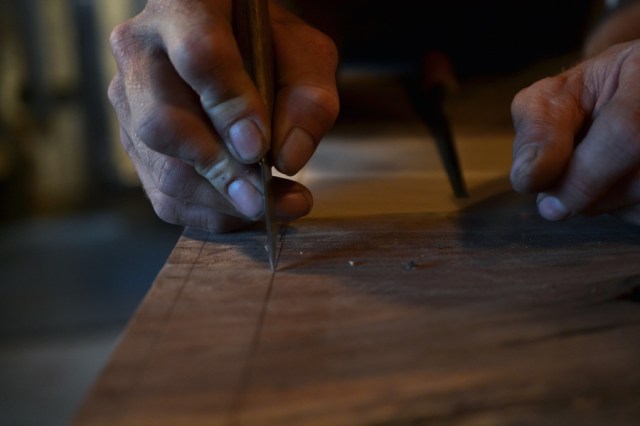

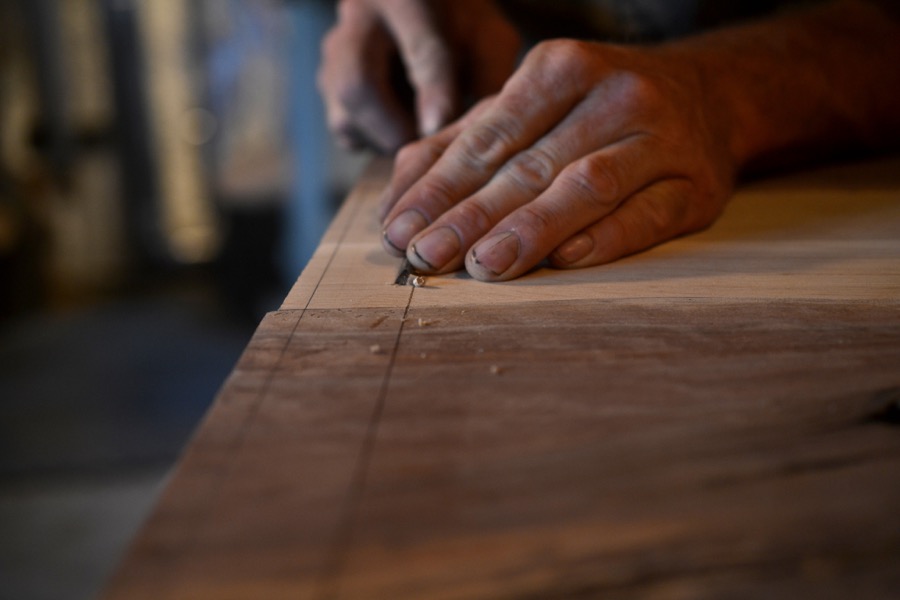

marking the end cuts with a sharp knife
Champion Table Build Part202
then creating a shoulder along that line with a chisel assures a clean cut without tearing the grain
Champion Table Build Part204

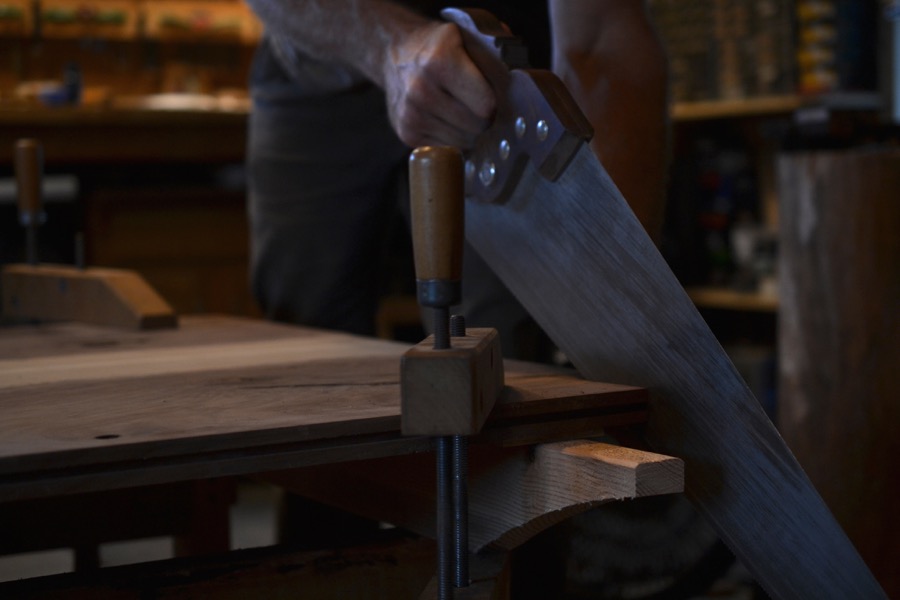

cutting along the shoulder with a sharp crosscut saw
Champion Table Build Part206
a small array of saws to do this job
Champion Table Build Part205

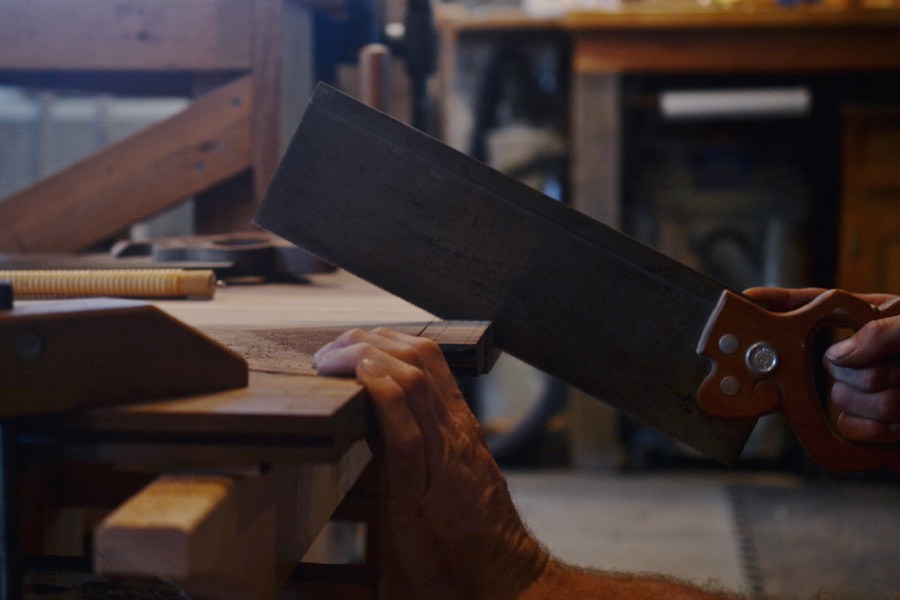

cutting the central breadboard tenon

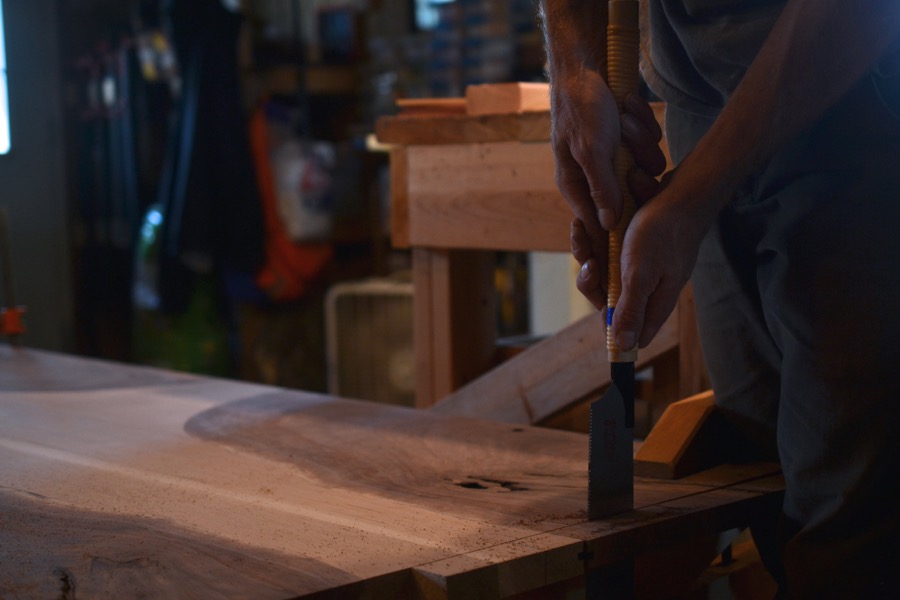

Champion Table Build Part207
coming up to the other side with a pull-saw
Champion Table Build Part208

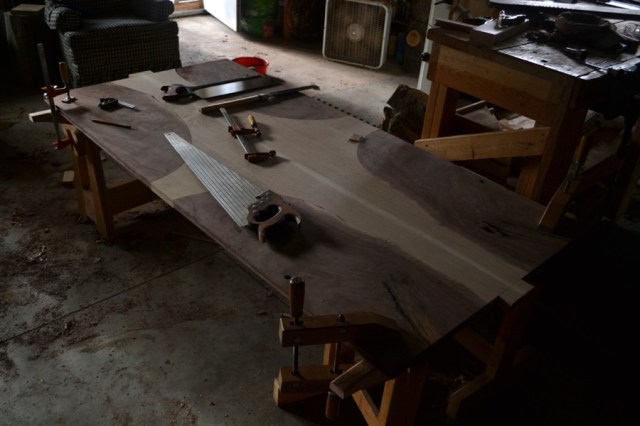

both ends of the table are now cut
Champion Table Build Part209

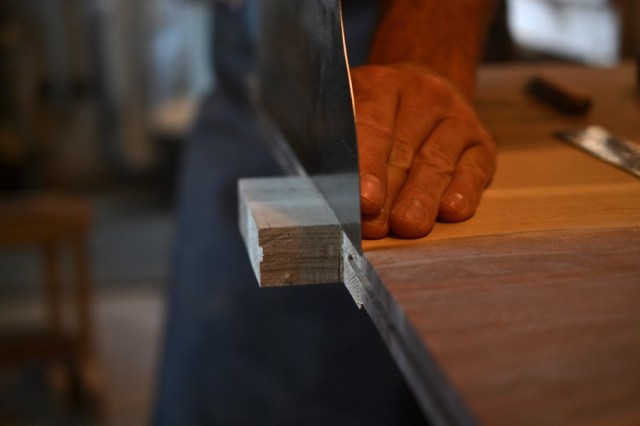

cutting the base of the tenon “cheeks”
Champion Table Build Part210
really no other position to accurately make this cut
Champion Table Build Part211

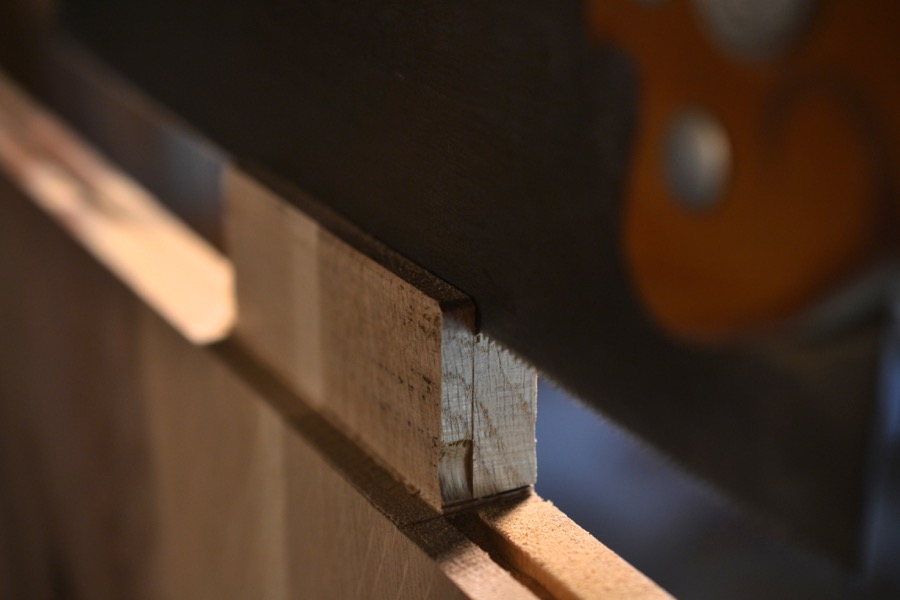

cutting away the “cheeks”
Champion Table Build Part212
the finished tenon, and a groove has been cut to receive a floating tongue to align the breadboard
Champion Table Build Part213

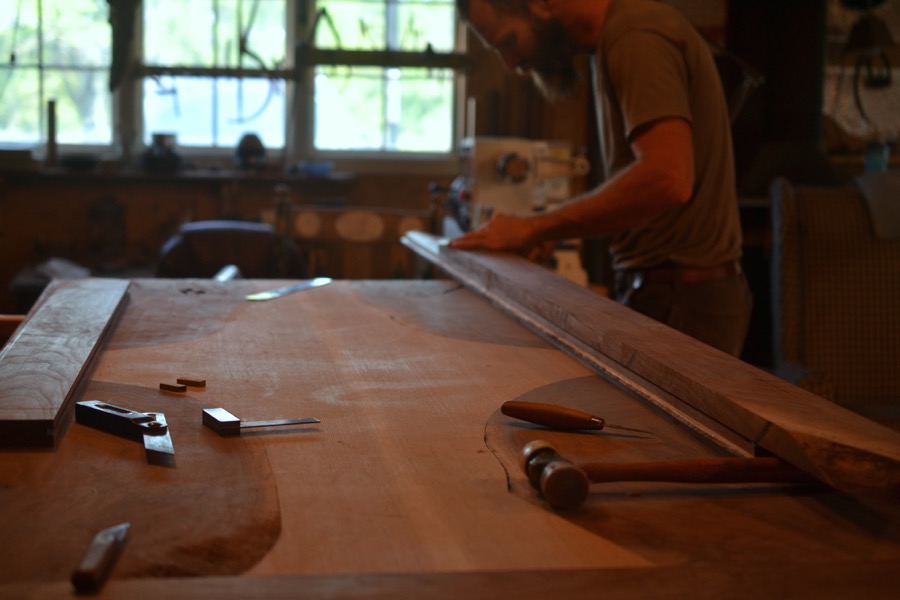

laying out the positions of the mortise and tenons on the side rails and breadboards
Champion Table Build Part214
cutting the tenon on the side rails
Champion Table Build Part216

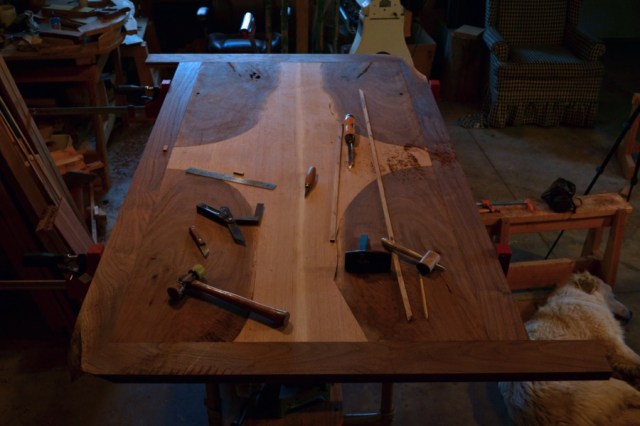

checking for a tight fit. the side rails are attached with glued tongue and groove joints, while the breadboards are “floating”, held in place by a tongue and groove joint and two “draw-bored” mortise and tenon joints, which will allow for expansion and contraction where the grain intersects perpendicular rather than parallel, yet holding the boards tight to the edge of the table. Two opposing corners are pinned miters and the other two are mortised.  imagine the table being able to expand in width along the length of the two boards left long to see the allowance for seasonal cross grain movement.
Champion Table Build Part220
treating the edges before the final assembly
Champion Table Build Part217

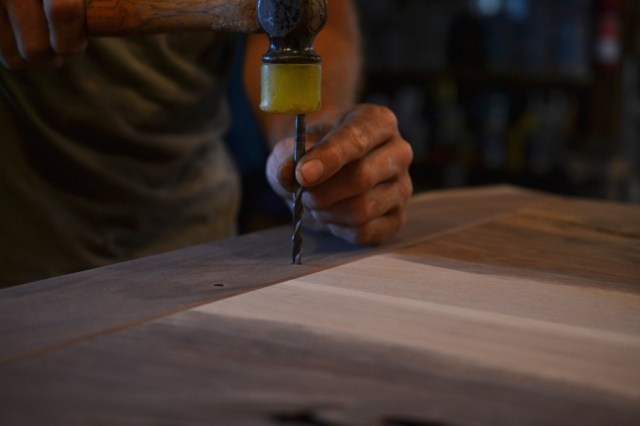

drilling for the dowels for the pinned miter joints where the live edges come together
Champion Table Build Part221
a brad point drill marks the center of the tenon inside
Champion Table Build Part222
re-marking the tenon with an offset so that the dowel pin will “draw” it tight to the edge of the table.  the holes will be elongated laterally to allow for joint movement.
Champion Table Build Part223

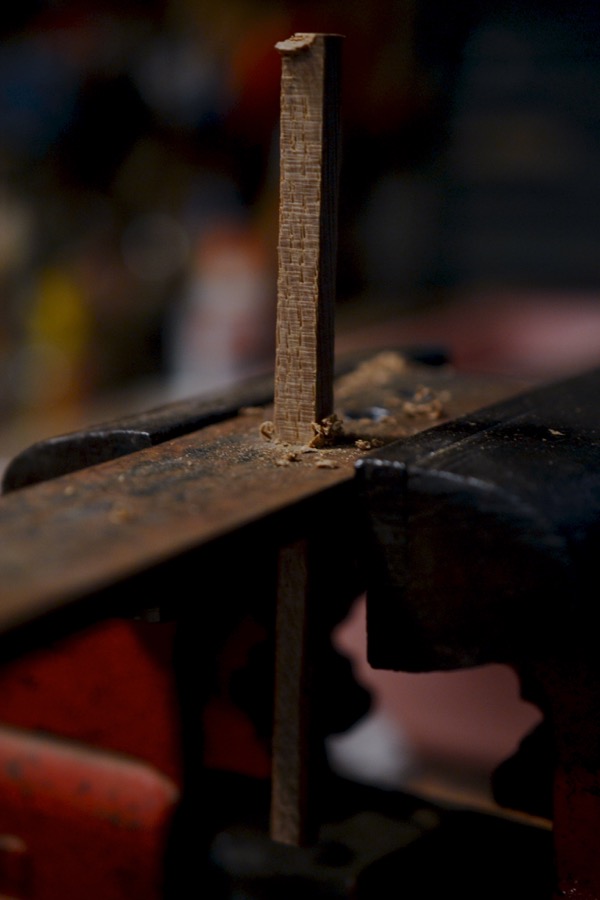

altering geometry with violence
Champion Table Build Part224

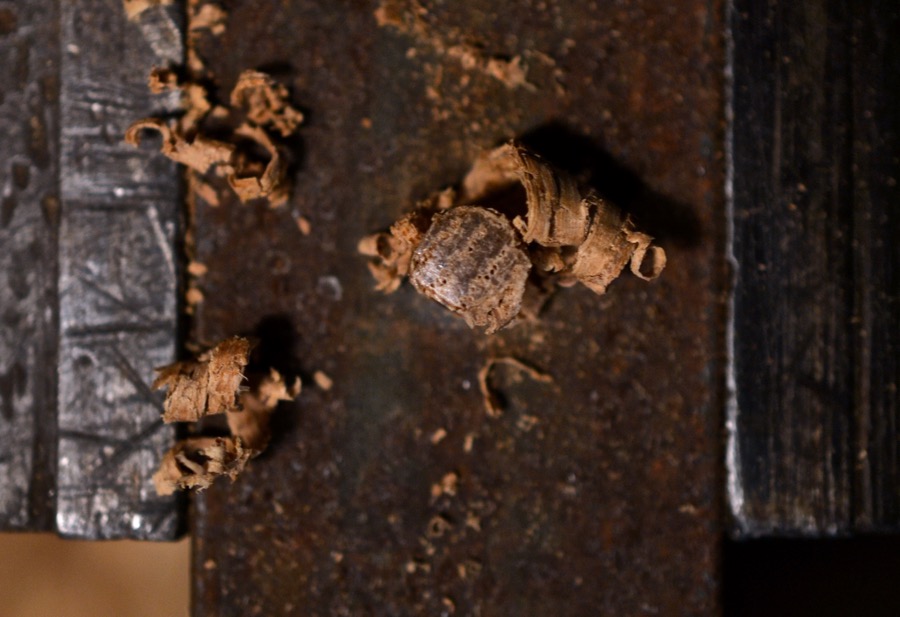

shaping the dowel pins by pounding the straight oak through a succession of smaller holes drilled in a steel plate until they are round and the size I need
Champion Table Build Part225
nearly there
Champion Table Build Part227
a batch of pins
Champion Table Build Part226

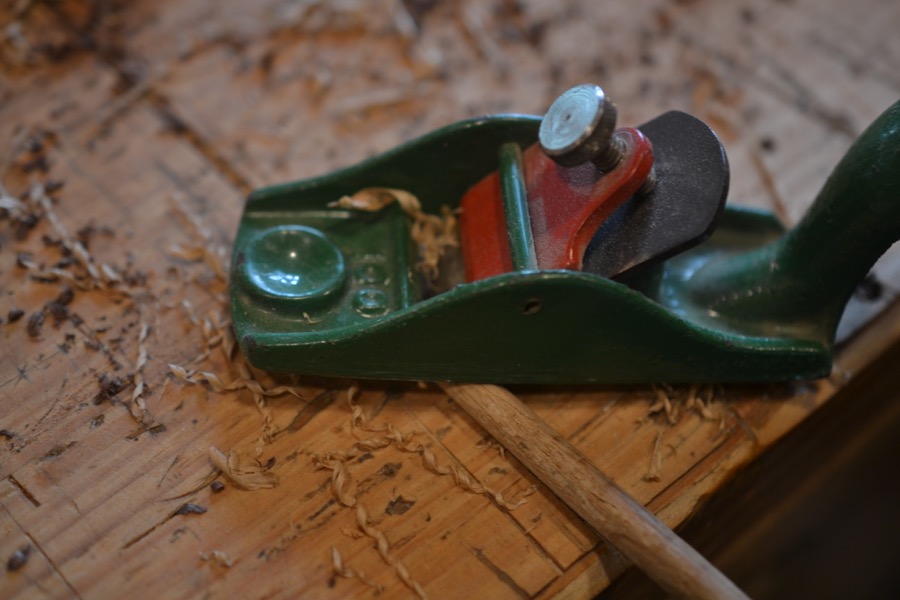

planing a taper
Champion Table Build Part228
the taper will allow the pin to engage the offset hole in the tenon and slowly pull it tight

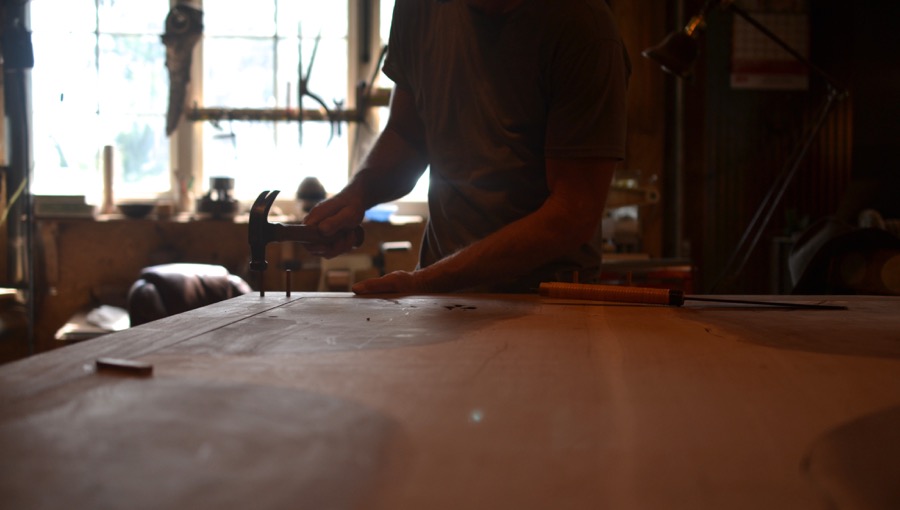

Champion Table Build Part230
pounding the pins home for the final assembly

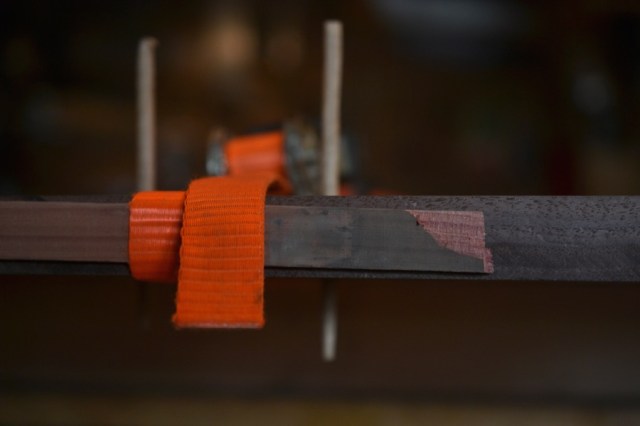

Champion Table Build Part229
a little help form a ratchet strap to pull the center tight

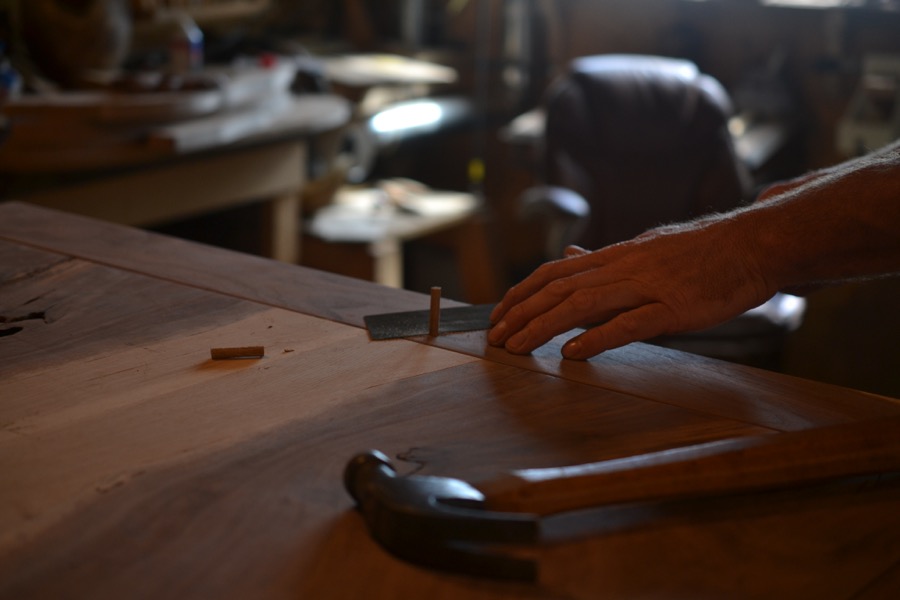

Champion Table Build Part232
cutting away the exposed ends with a saw
Champion Table Build Part233

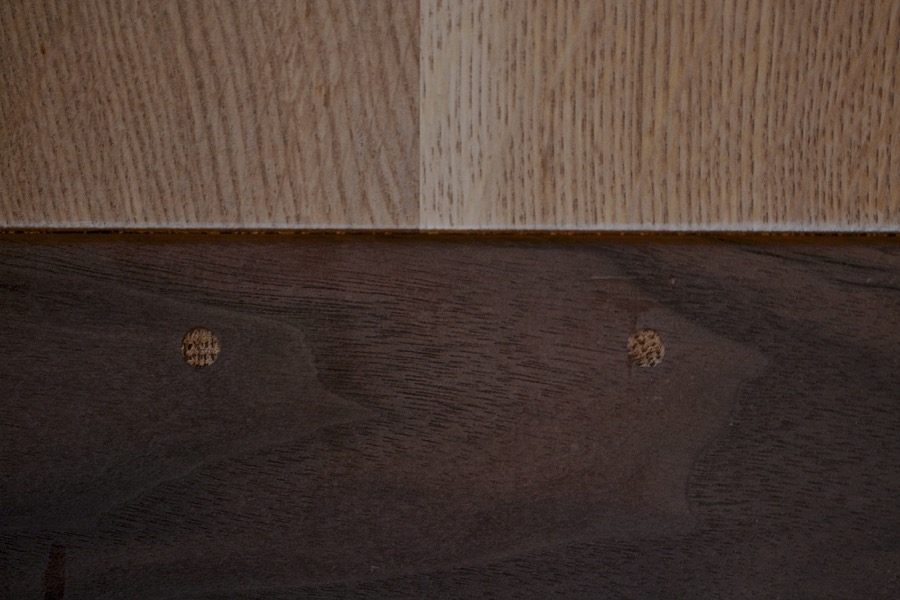

a tightly pinned joint
Champion Table Build Part234

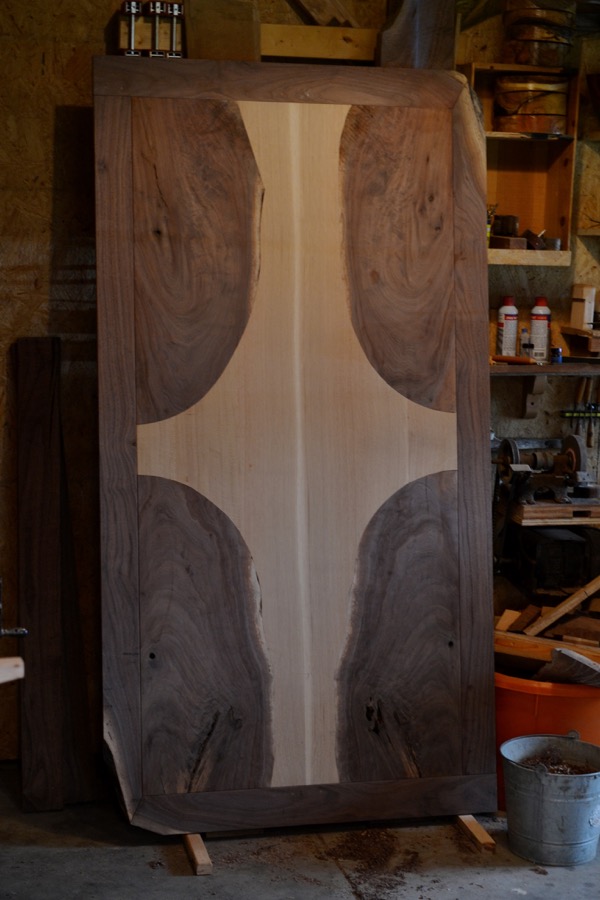

the top all joined. there will be a considerable amount of detail work on the top yet, but first the base



The Champion Table Build, Part 1: Compose, Scribe and Fit

Champion Table Scribe02
the beauty of God’s edge
Champion Table Scribe04

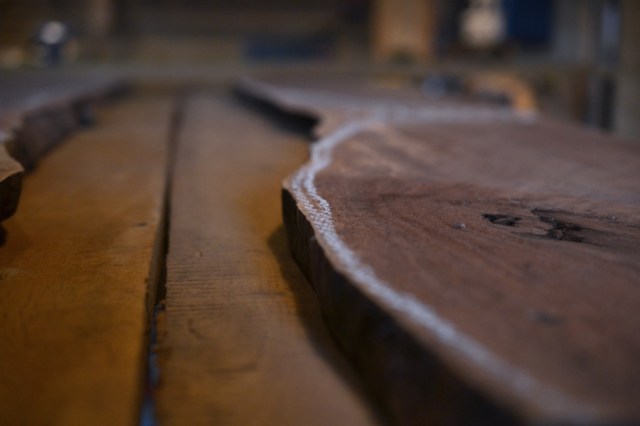

composing pieces
Champion Table Scribe01

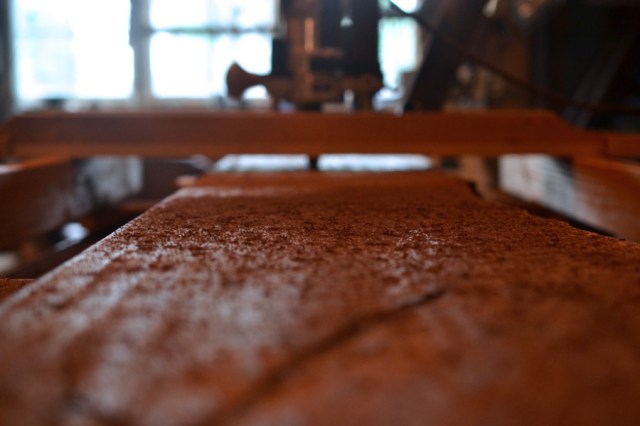

flattening black walnut with a router and jig
Champion Table Scribe03
more looking, more composing

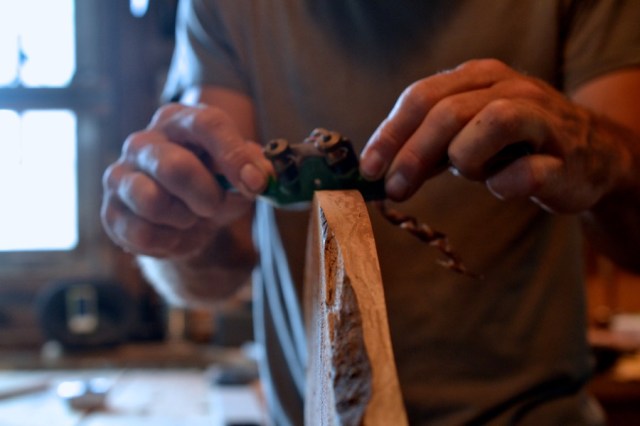

Champion Table Scribe05
smoothing and shaping edges
Champion Table Scribe07
smoothing and joining white oak
Champion Table Scribe06
assembling white oak panels
Champion Table Scribe08
white oak and black walnut adjusted and clamped for scribing
Champion Table Scribe09
knife scribing every curve
Champion Table Scribe10

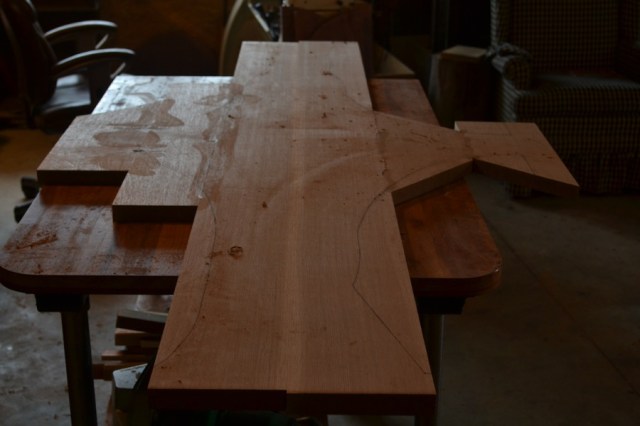

the white oak panel marked and ready to cut
Champion Table Scribe12
rough cutting on the bandsaw, staying about 1/16th to 1/8th away from the scribed line
Champion Table Scribe13
cutting the line deeper
Champion Table Scribe14

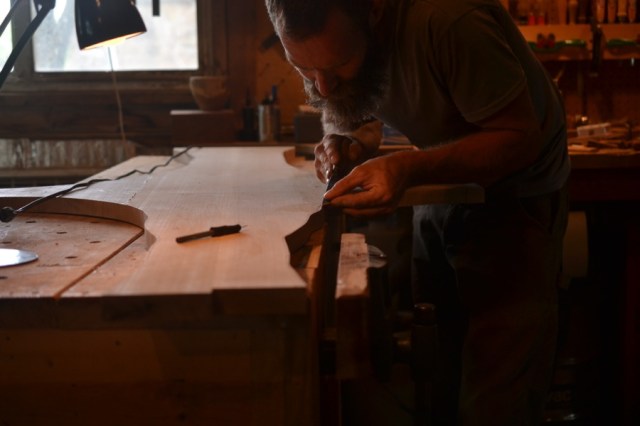

paring away the waste to establish a shoulder along the scribe-line
Champion Table Scribe16
making the shoulders broad and deep
Champion Table Scribe17
chopping and paring right up to the line
Champion Table Scribe15

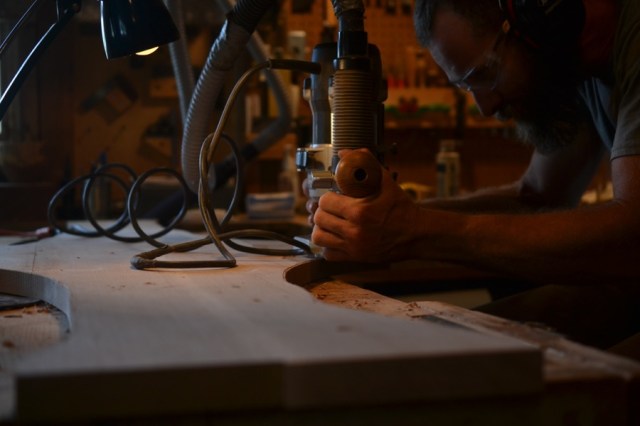

the shoulder becomes a jig to cut the rest of the piece right to the line using a pattern bit and router
Champion Table Scribe18
after cutting a slot for a floating tenon, dry-fitting pieces
Champion Table Scribe19

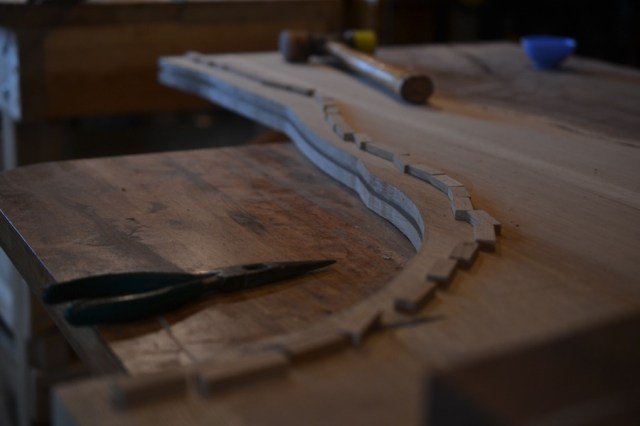

the floating tenons cut and laid out
Champion Table Scribe20
tenons glued in

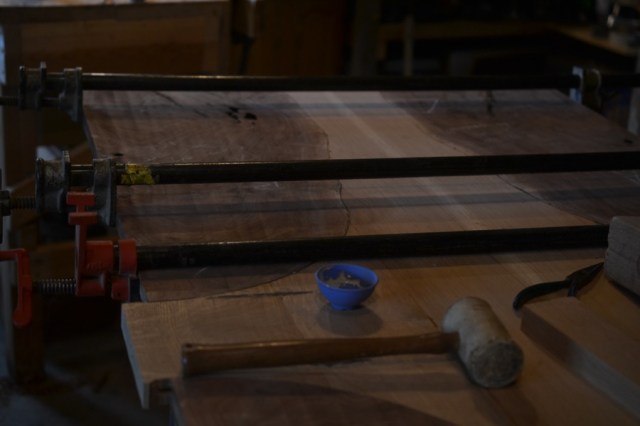

Champion Table Scribe21
glued and clamped
Champion Table Scribe22

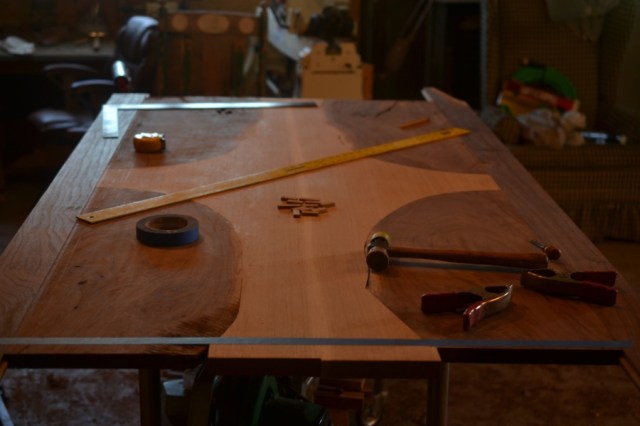

joining and smoothing the new edges
